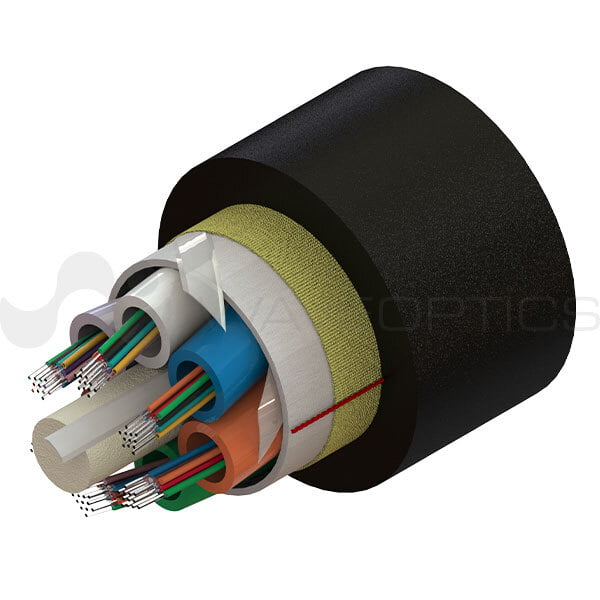

Single Jacket ADSS Cable
Waveoptics® Single Jacket ADSS Cable Gel-Filled is designed for self-supporting and duct applications for cable spans up to 1,050 feet, allowing an easy and cost-effective one-step installation using standard hardware and installation methods. Reduced weight design and smaller diameter allows the usage of smaller ducts.
Loose tubes are made of PBT which provide great mechanical properties under a wide range of conditions such as crush test and impact test, and are filled with water blocking gel.
PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.
The SZ-stranded method for loose tubes and two ripcords ensure a quick and easy mid-span access.
Dielectric central strength member requires no bonding or grounding.
Applications
Protections
Design Properties
| Fiber per Tube | 2 - 12 |
| Dielectric Strength Member | FRP |
| Outer Jacket Material / Thickness | Polyethylene / 1.55 mm (0.06 in) |
| Loose Tube Diameter | 2.2 mm (0.09 in) |
| Drum Length | 10,000 ft, 15,000 ft & 20,000 ft (±5%) |
Temperature Range
| Operation | -40°C to 70°C (-40°F to 158°F) |
| Installation | -30°C to 70°C (-22°F to 158°F) |
| Storage / Transport | -40°C to 70°C (-40°F to 158°F) |
Mechanical Properties
| Crush Resistance (Short-Term / Long-Term) | 2,200 N/100mm / 1,100 N/100mm |
| Minimum Bend Radius (Operation / Installation) | 10 x OD / 20 x OD |
Single Jacket ADSS
Track-Resistant Cable
Waveoptics® Single Jacket ADSS Track-Resitant Cable is designed for self-supporting and duct applications for cable spans up to 1,050 feet, allowing an easy and cost-effective one-step installation using standard hardware and installation methods. Reduced weight design and smaller diameter allows a higher density of fiber using existing pole hardware.
Loose tubes are made of PBT which provide great mechanical properties under a wide range of conditions such as crush test and impact test, and are filled with water blocking gel.
Track-resistant PE (TRPE) single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors. Available for high voltage transmission lines for the following electric field potential ranges: 12 kV to 25 kV and higher than 25 kV up to 400 kV.
The SZ-stranded method for loose tubes and two ripcords ensure a quick and easy mid-span access.
Dielectric central strength member requires no bonding or grounding.
Applications
Protections
Design Properties
| Fiber per Tube | 2 - 12 |
| Dielectric Strength Member | FRP |
| Outer Jacket Material / Thickness | Track-Resistant Polyethylene / 1.55 mm (0.06 in) |
| Loose Tube Diameter | 2.2 mm (0.1 in) |
| Drum Length | 10,000 ft, 15,000 ft & 20,000 ft (±5%) |
Temperature Range
| Operation | -40°C to 70°C (-40°F to 158°F) |
| Installation | -30°C to 70°C (-22°F to 158°F) |
| Storage / Transport | -40°C to 70°C (-40°F to 158°F) |
Mechanical Properties
| Crush Resistance (Short-Term / Long-Term) | 2,200 N/100mm / 1,100 N/100mm |
| Minimum Bend Radius (Operation / Installation) | 10 x OD / 20 x OD |
