LOOSE TUBE SINGLE-ARMORED CABLES

Product    Outdoor Cables     Loose Tube Single-Armored Cables

Central Loose Tube Armored Cable
Loose Tube Single-Armored Single Jacket Slim Cable
Loose Tube Single-Armored Single Jacket Cable
Loose Tube Single-Armored Double Jacket Slim Cable
Loose Tube Single-Armored Single Double Jacket Cable
Loose Tube Single-Armored Flat Ribbon Fiber Cable
Central Loose Tube Single-Armored Flat Ribbon Fiber Cable

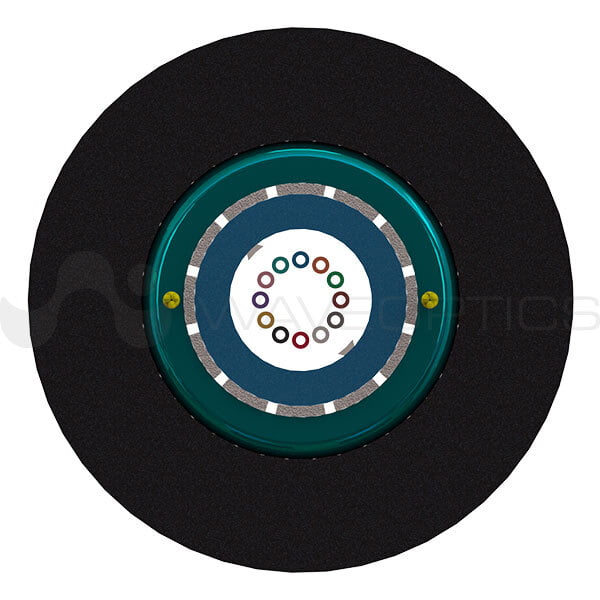

Central Loose Tube Armored Cable

Central Loose Tube Armored Cable

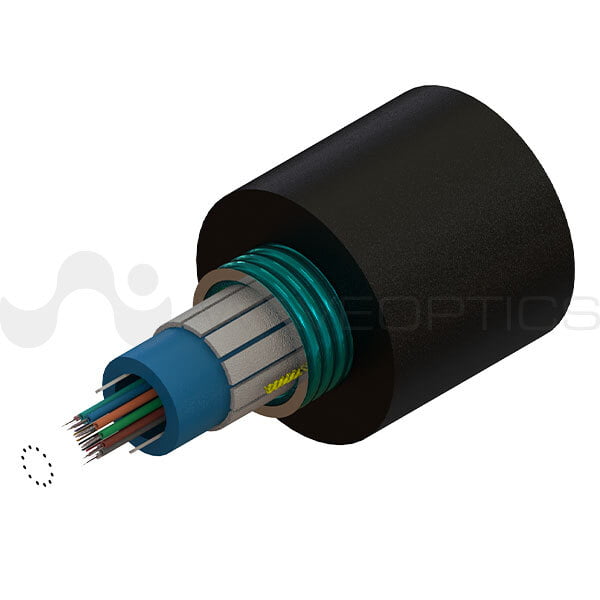

Waveoptics® Central Loose Tube Armored Cable is designed for direct-buried installation, as well as for duct and aerial (lashed) installation.

Single loose tube made of PBT which provides great mechanical properties under a wide range of conditions such as crush test and impact test, and is filled with water blocking gel.

Two ripcords ensure a quick fiber access.

The cable contains water blocking aramid yarn that helps increase tensile strength and also provides protection against water penetration.

Corrugated steel armor makes a rugged cable rodent resistant and offers exceptional performance against compression.

Applications

Protections

Central Loose-Tube Armored Cable Dry PBT- Technical Data Sheet

Design Properties

 Fiber per Tube1 - 12
Strength MemberWater Blocking Aramid Yarn
 Outer Jacket Material / Thickness Polyethylene / 1.6 mm (0.06 in)
 Loose Tube Material / DiameterPBT / 3 mm (0.12 in)
 Drum Length 5,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 1,500 N/100mm / 500 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD

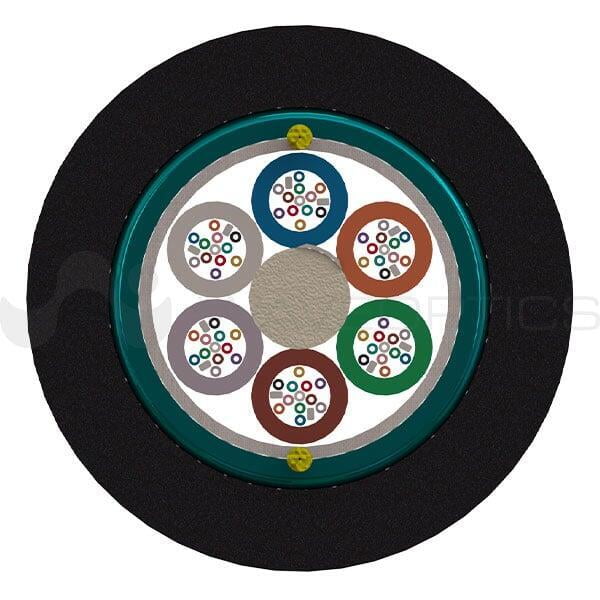

Loose Tube Single-Armored Single Jacket Slim Cable

Loose Tube Single-Armored
Single Jacket Slim Cable

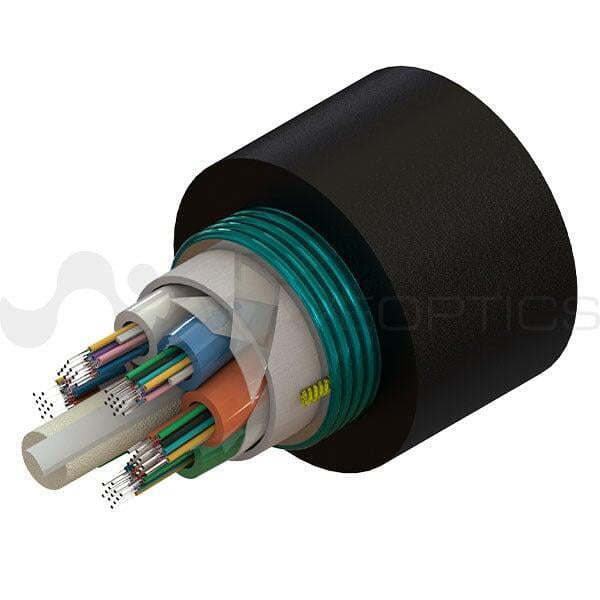

Waveoptics® Loose Tube Single-Armored Single Jacket Slim Cable is designed for direct-buried installation, as well as for duct and aerial (lashed) installation. Reduced weight design and smaller diameter allows the usage of smaller ducts.

The SZ-stranded method for loose tubes and two ripcords ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Corrugated steel armor makes a rugged cable rodent resistant and offers exceptional performance against compression.

Applications

Protections

Loose Tube Single-Armored Single Jacket Slim Cable Dry PP - Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Dielectric Strength MemberFRP
 Outer Jacket Material / Thickness Polyethylene / 1.6 mm (0.06 in)
 Loose Tube Diameter1.9 mm (0.07 in)
 Drum Length5,000 ft, 10,000 ft, & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 4,400 N/100mm / 2,200 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD

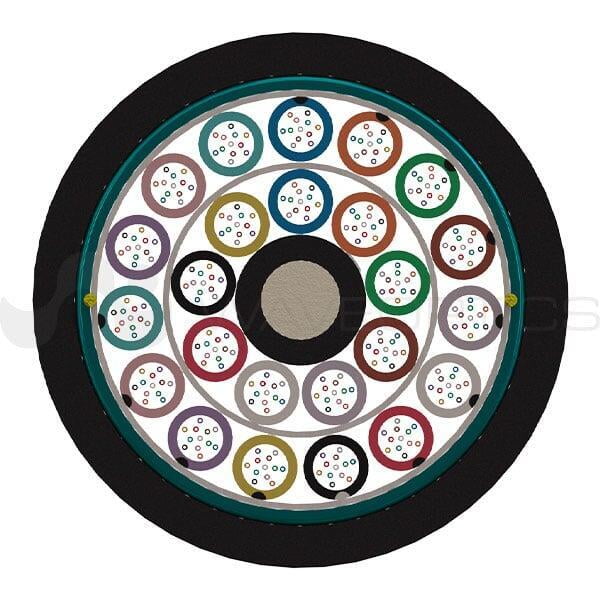

Loose Tube Single-Armored Single Jacket Cable

Loose Tube Single-Armored
Single Jacket Cable

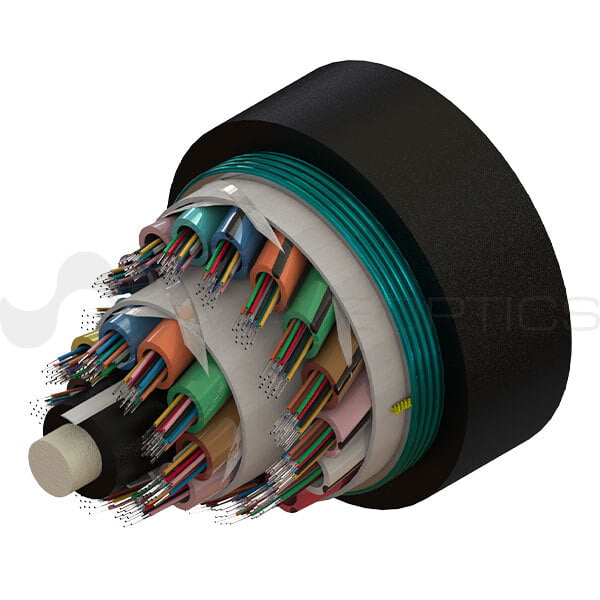

Waveoptics® Loose Tube Single-Armored Single Jacket Cable is designed for direct-buried installation, as well as for duct and aerial (lashed) installation.

The SZ-stranded method for loose tubes and two ripcords ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Corrugated steel armor makes a rugged cable rodent resistant and offers exceptional performance against compression.

Applications

Protections

Loose-Tube Single-Armored Single Jacket Cable Dry PP- Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Dielectric Strength MemberFRP
 Outer Jacket Material / Thickness Polyethylene / 1.6 mm (0.06 in)
 Loose Tube Diameter2.5 mm (0.1 in)
 Drum Length 10,000 ft, 15,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 4,400 N/100mm / 2,200 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD

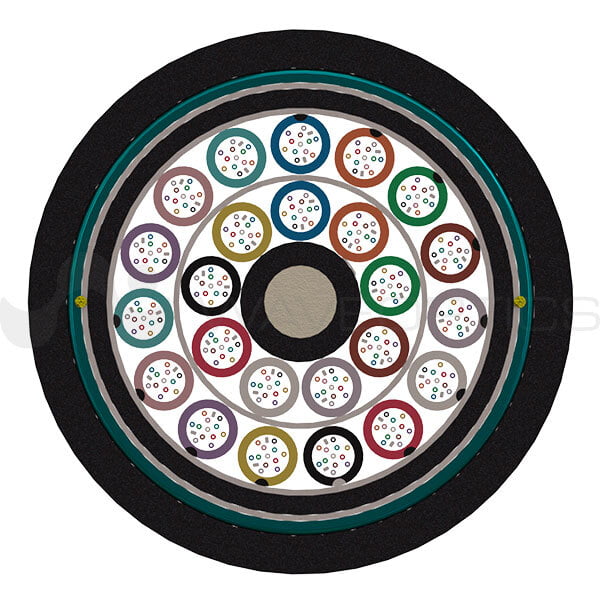

Loose Tube Single-Armored Double Jacket Slim Cable

Loose Tube Single-Armored
Double Jacket Slim Cable

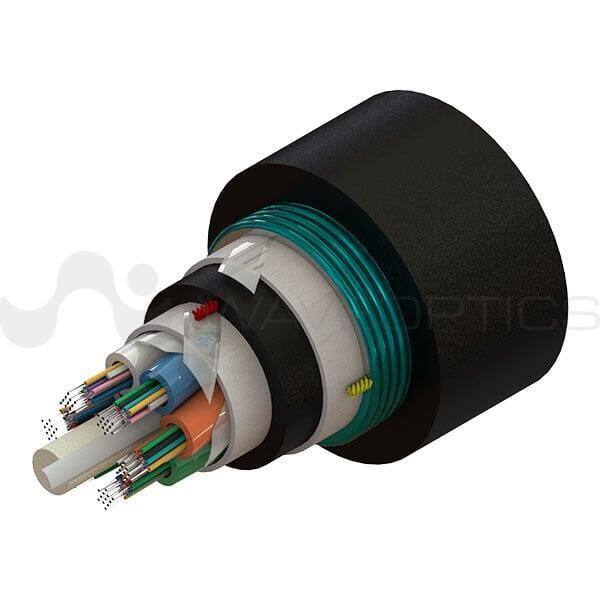

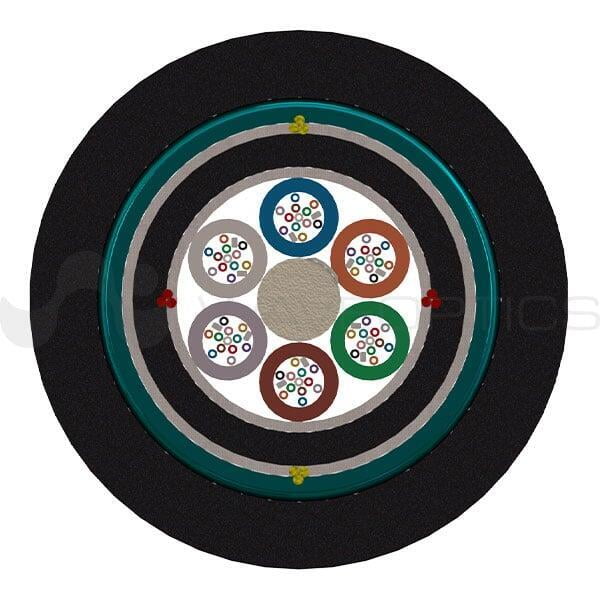

Waveoptics® Loose Tube Single-Armored Double Jacket Slim Cable is designed for direct-buried installation, as well as for duct and aerial (lashed) installation. Reduced weight design and smaller diameter allows the usage of smaller ducts.

The SZ-stranded method for loose tubes and four ripcords ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Corrugated steel armor makes a rugged cable rodent resistant and offers exceptional performance against compression.

Applications

Protections

Loose Tube Single-Armored Double Jacket Slim Cable Dry PP - Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Dielectric Strength MemberFRP
 Outer Jacket Material / Thickness Polyethylene / 1.6 mm (0.07 in)
Inner Jacket Material / Thickness  Polyethylene / 0.8 mm (0.03 in)
 Loose Tube Diameter 1.9 mm (0.07 in)
 Drum Length10,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
4,400 N/100mm / 2,200 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Loose Tube Single-Armored Single Double Jacket Cable

Loose Tube Single-Armored
Double Jacket Cable

Waveoptics® Loose Tube Single-Armored Double Jacket Cable is designed for direct-buried installation, as well as for duct and aerial (lashed) installation.

The SZ-stranded method for loose tubes and four ripcords ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Corrugated steel armor makes a rugged cable rodent resistant and offers exceptional performance against compression.

Applications

Protections

Loose Tube Single-Armored Double Jacket Cable Dry PP - Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Dielectric Strength MemberFRP
 Outer Jacket Material / ThicknessPolyethylene / 1.6 mm (0.06 in)
 Inner Jacket Material / Thickness Polyethylene / 0.8 mm (0.03 in)
 Loose Tube Diameter2.5 mm (0.1 in)
 Drum Length 10,000 ft, 15,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 4,400 N/100mm / 2,200 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD

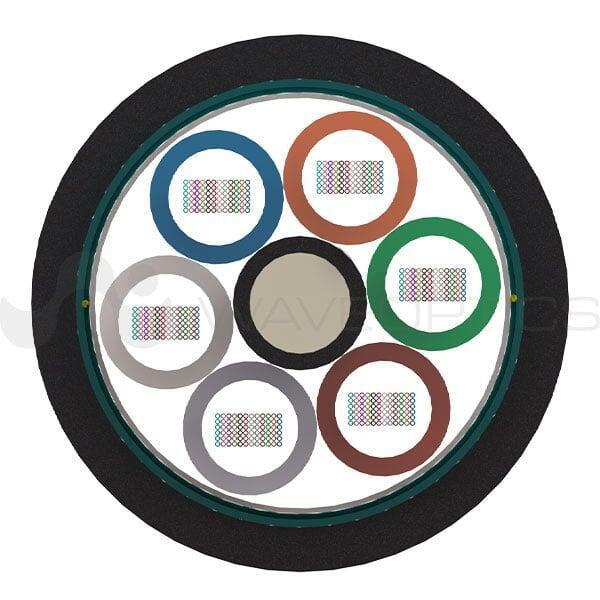

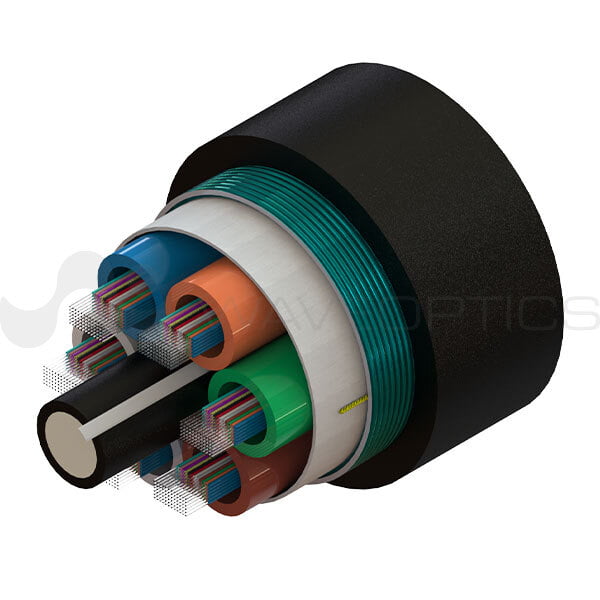

Loose Tube Single-Armored Flat Ribbon Fiber Cable

Loose Tube Single-Armored Flat Ribbon Fiber Cable

Loose Tube Ribbon cables are designed for outdoor applications, these cables can be installed in ducts as well as for duct and aerial (lashed) installation, and they are known because of their outstanding carrying capacity.

Ribbon units are stranded around a fiber reinforced plastic (FRP) central strength member with PE is surrounded with water blocking yarns.

Dielectric central strength member requires no bonding or grounding.

Corrugated steel armor makes a rugged cable rodent deterrent and offers exceptional performance against compression.

Applications

Protections

Loose Tube Single-Armored Flat Ribbon Fiber Cable - Technical Data Sheet

Design Properties

 Fiber per Tube24 - 144
 Dielectric Strength MemberFRP
 Outer Jacket MaterialPolyethylene
 Loose Tube materialPBT
 Drum Length96F: 20,000 ft (±5%)
144F: 15,000 ft (±5%)
288F, 432F, 576F: 10,000 ft (±5%)
864 F: 5,000 ft (±5%)

Temperature Range

 Operation
-30°C to 70°C (-22°F to 158°F)
 Installation -30°C to 60°C (-4°F to 140°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term)
 3,000 N/100mm / 1,000 N/100mm
 Tensile Strength (short-term/long-term) 3,000 N / 900 N
 Minimum Bend Radius
(Operation / Installation)
 15 x OD / 25 x OD

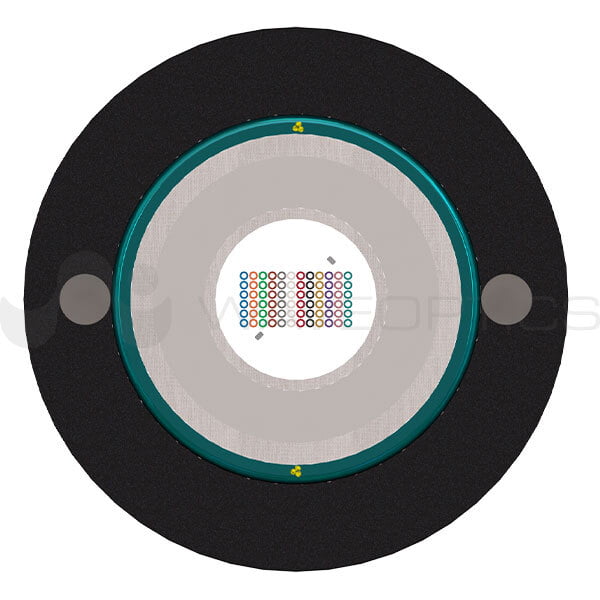

Central Loose Tube Single-Armored Flat Ribbon Fiber Cable

Central Loose Tube Single-Armored
Flat Ribbon Fiber Cable Dry

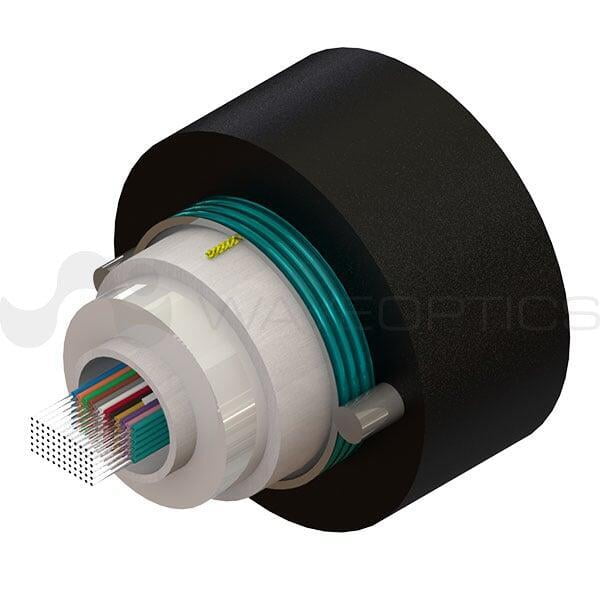

Waveoptics® Central Loose Tube Single-Armored Flat Ribbon Fiber Cable Dry is designed for outdoor applications, this cable can be duct-buried as well as aerial (lashed) installation, and it is known because of its outstanding carrying capacity and compact design.

PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

Corrugated steel armor makes a rugged cable rodent deterrent and offers exceptional performance against compression.

Applications

Protections

Loose Tube Single-Armored Flat Ribbon Fiber Cable - Technical Data Sheet

Design Properties

 Fiber per Tube12 - 288
Strength Member / DiameterSteel / 1.4 mm (0.06 in)
 Outer Jacket MaterialPolyethylene
 Inner Tube MaterialPBT
 Drum Length12-96F: 20,000 ft (±5%)
144F: 15,000 ft (±5%)
216-288F: 10,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term)
2,200 N/100mm / 1,100 N/100mm
 Tensile Strength (short-term/long-term) 2,000 N / 900 N
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 25 x OD
