Air Blown Micro Cable
Central Loose Tube Air Blown Micro Cable
Air Blown Micro Cable

Air Blown Micro Cable

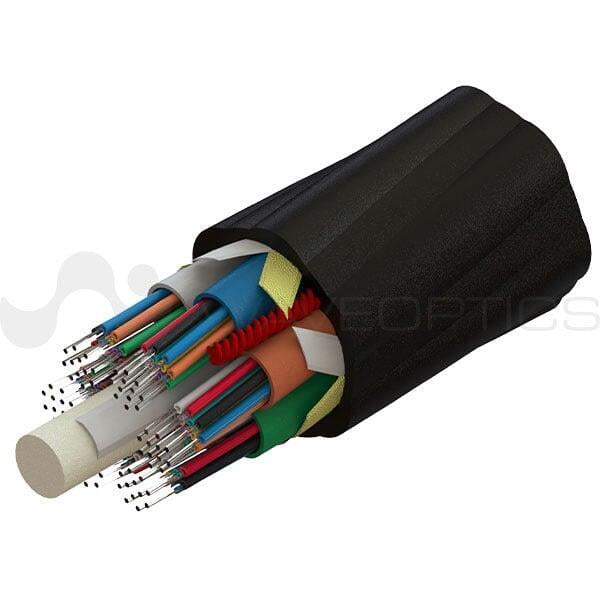

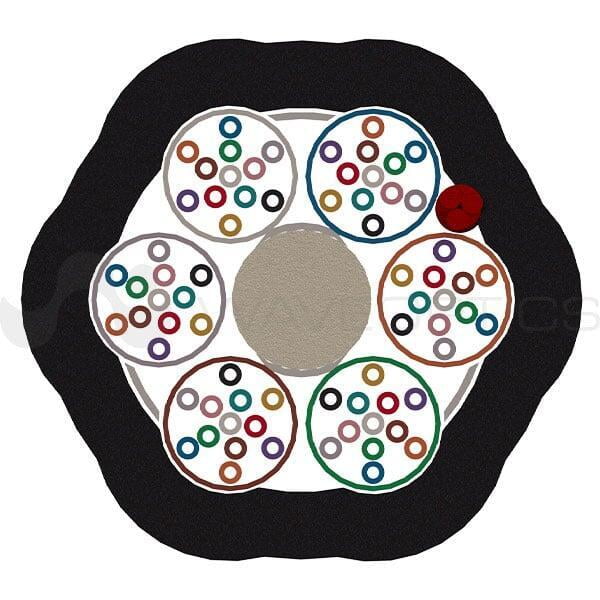

Waveoptics® Air Blown Micro Cable Gel-Filled all-dielectric design with a small outer diameter, makes it ideal for microduct applications, lowering deployment cost, allowing the usage of the air blown fiber method for installation. Designed for microducts with an inner diameter ranging from 8 mm to 16 mm, according to the fiber count.

Loose tubes are made of PBT which provide great mechanical properties under a wide range of conditions and are filled with water blocking gel.

PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

The SZ-stranded method for loose tube sand one ripcord ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Internal and external water blocking yarn sand water blocking aramid yarn used as binder, providing protection against water penetration and adding tensile strength.

Applications

Protections

Air Blown Micro Cable Gel-Filled- Technical Data Sheet

Design Properties

 Fiber per Tube2 - 24
 Dielectric Strength MemberFRP
 Outer Jacket Material / Thickness Polyethylene / 1.4 mm (0.06 in)
 Loose Tube Material / Diameter PBT / 1.4 mm (0.06 in)
 Drum Length 5,000 ft, 10,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -10°C to 50°C (-14°F to 122°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 500 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Central Loose Tube Air Blown Micro Cable

Central Loose Tube Air Blown Micro Cable

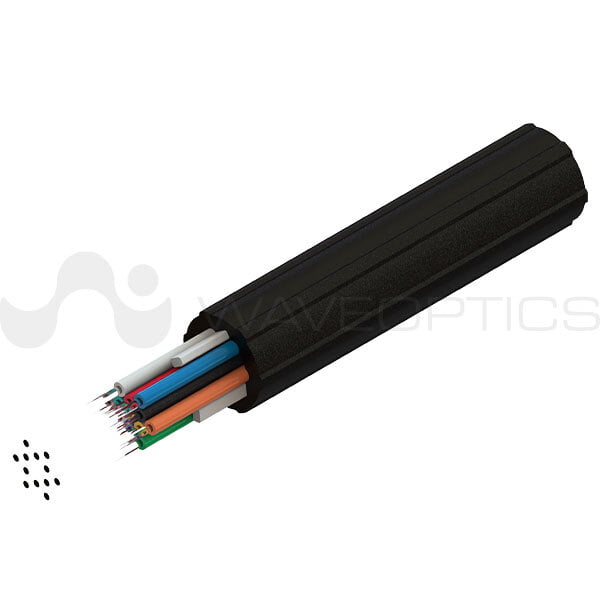

Waveoptics® Central Loose Tube Air Blown Micro Cable all-dielectric design has a small outer diameter that makes it ideal for microduct applications, lowering deployment cost and allowing the usage of the air blown fiber method for installation.

PE single jacket with additives makes a resistant and durable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

Optical Fibers are placed in photosensitive resin material for UV curing to create a core.

Applications

Protections

Air Blown Micro Cable Gel-Filled- Technical Data Sheet

Design Properties

 Fiber per Tube1 - 12
 Outer Jacket Material Polyethylene
 Drum Length10,000 ft (±5%)

Temperature Range

 Operation
-10°C to 70°C (-14°F to 158°F)
 Installation -5°C to 50°C (-23°F to 122°F)
 Storage / Transport -10°C to 70°C (-14°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 40 mm / 80 mm
