Loose Tube Double-Armored Double Jacket Cable
Loose Tube Double-Armored Triple Jacket Cable
Loose Tube Double-Armored Double Jacket Cable

Loose Tube Double-Armored
Double Jacket Cable

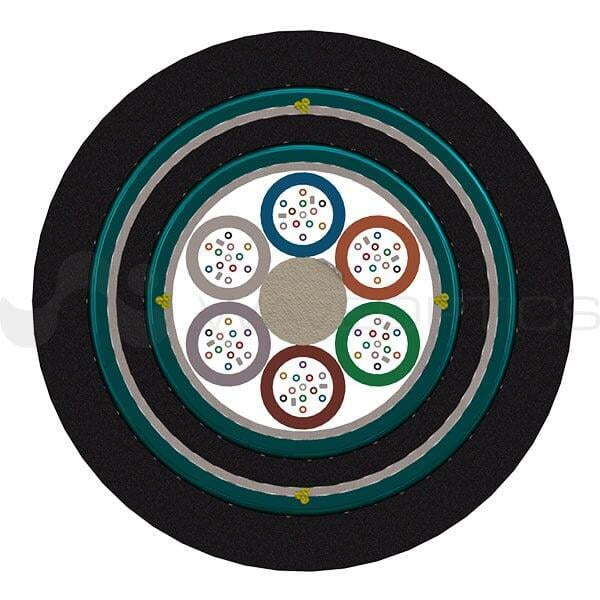

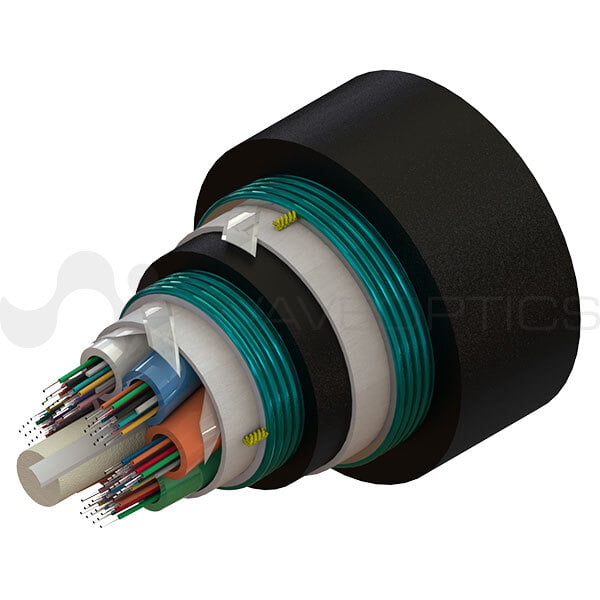

Waveoptics® Loose Tube Double-Armored Double Jacket Cable is designed for direct-buried installation, as well as for duct and aerial (lashed) installation.

The SZ-stranded method for loose tubes and four ripcords ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Corrugated steel armor makes a rugged cable and offers exceptional performance against compression. Double-armored design offers superior protection against rodents.

Applications

Protections

Loose Tube Doble-Armored Double Jacket Cable Dry PP - Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Dielectric Strength MemberFRP
 Outer Jacket Material / Thickness Polyethylene / 1.6 mm (0.06 in)
Inner Jacket Material / Thickness Polyethylene / 0.8 mm (0.03 in)
 Loose Tube Diameter2.5 mm (0.1 in)
 Drum Length 10,000 ft, 15,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 4,400 N/100mm / 2,200 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Loose Tube Double-Armored Triple Jacket Cable

Loose Tube Double-Armored
Triple Jacket Cable

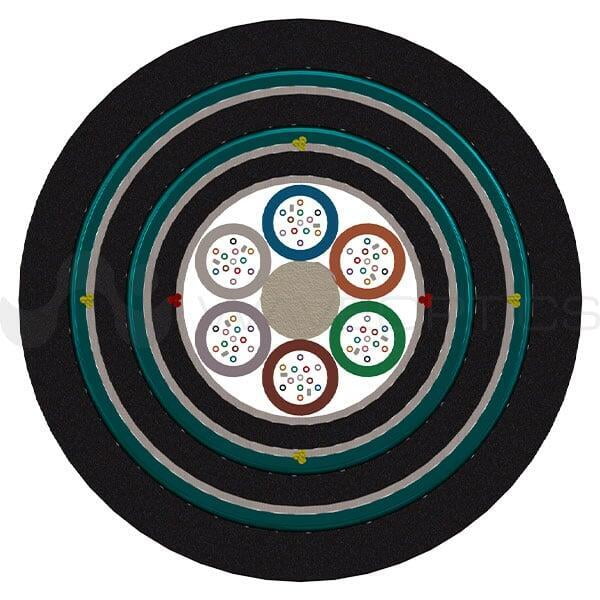

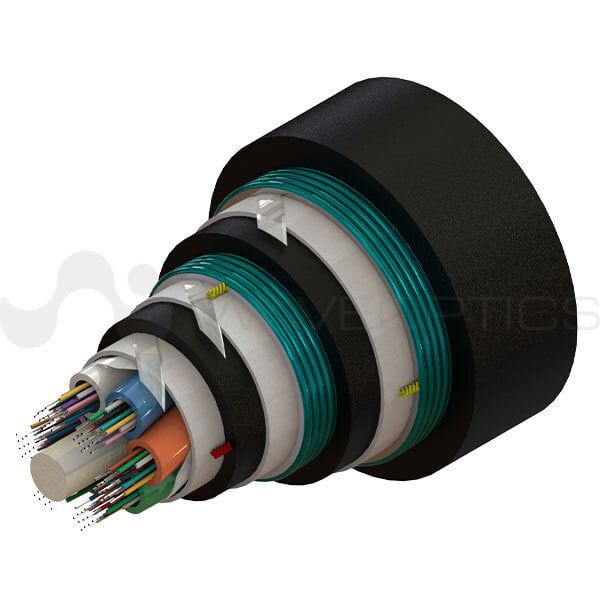

Waveoptics® Loose Tube Double-Armored Triple Jacket Cable is designed for direct-buried installation, as well as for duct and aerial (lashed) installation.

The SZ-stranded method for loose tube sand six ripcords ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Corrugated steel armor makes a rugged cable and offers exceptional performance against compression. Double-armored design offers superior protection against rodents.

Applications

Protections

Loose Tube Double-Armored Triple Jacket Cable Dry PP - Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Dielectric Strength MemberFRP
 Outer Jacket Material / Thickness Polyethylene / 1.6 mm (0.07 in)
Middle Jacket Material / Thickness  Polyethylene / 1 mm (0.04 in)
Inner Jacket Material / Thickness  Polyethylene / 0.8 mm (0.03 in)
 Loose Tube Diameter2.5 mm (0.1 in)
 Drum Length 10,000 ft & 15,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 4,400 N/100mm / 2,200 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
