Pushable Cable
Pushable Cable

Pushable Cable

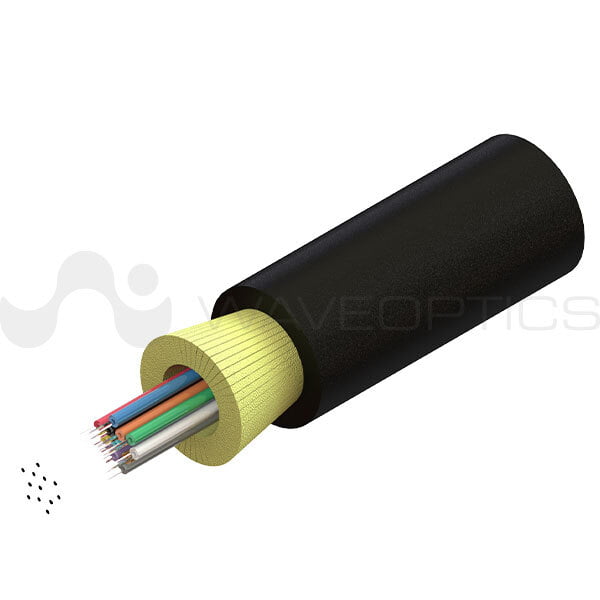

Waveoptics® Pushable Cable is designed for installation in microducts. Outer jacket made of PBT which provides great mechanical properties under a wide range of conditions such as crush test and impact test. Aramid yarn is used as a strength member.

These two elements combined make a light weight, robust and crush resistant cable that allows it to be pulled and pushed into a microduct, reducing fiber deployment cost, while maximizing the pulling and pushing distance.

1 – 4 fibers configuration uses water blocking aramid yarn and 6 – 12 fibers configuration is filled with water blocking gel.

Applications

Protections

Pushable Cable Gel-Filled - Technical Data Sheet

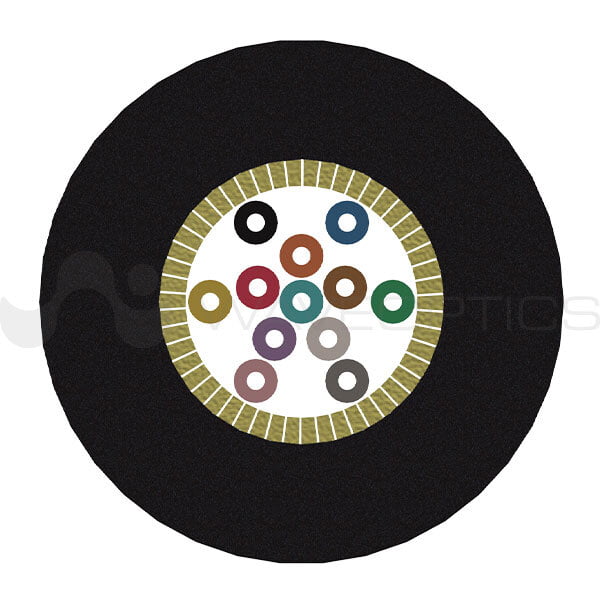

Design Properties

 Fiber Count1 - 12
 Nominal Outer Diameter2.95 mm (0.12 in) (±5%)
 Strength Member (1-4 fibers)Water Blocking Aramid Yarn
Strength Member (6-12 fibers)
 Aramid Yarn
 Outer Jacket Material / ThicknessPBT / 0.7 mm (0.028 in)
Reel Length6,562 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -25°C to 70°C (-13°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

Maximum  Crush Resistance
1,000 N/100mm
 Minimum Bend Radius 10 mm
