Flat Drop Cable

Flat Drop Cable

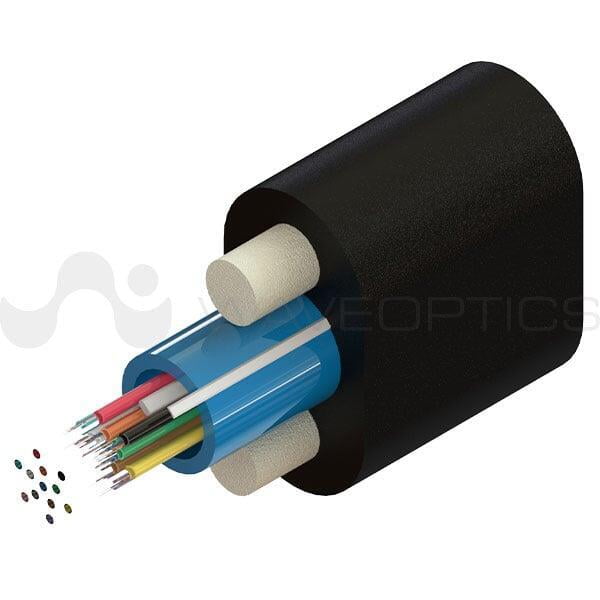

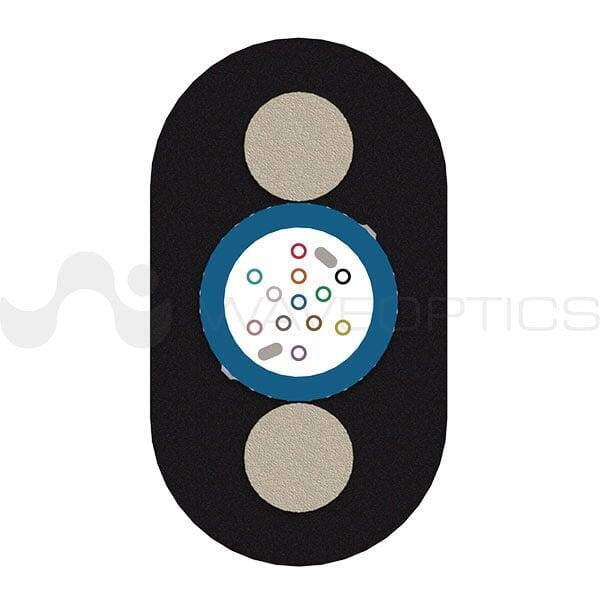

Waveoptics® Flat Drop Cable designed for self-supporting, direct-buried and duct installations. , fully dielectric design ideal for drop applications, offering ease of access as well as easy installation.


PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance.

Applications

Protections

Flat Drop Cable Gel-Filled - Technical Data Sheet
Flat Drop Cable Dry - Technical Data Sheet

Design Properties

 Fiber per Tube1 - 12
 Nominal Outer Dimensions 8.1 mm x 4.5 mm (0.32 in x 0.18 in) (±5%)
 Dielectric Strength Member Material / Diameter EAA Coated FRP / 1.5 mm (0.06 in)
 Outer Jacket Material Polyethylene
 Loose Tube Material / Diameter PBT / 3 mm (0.12 in)
 Drum Length 5,000 ft ,10,000 ft, 15,000 ft 20,000 ft & 40,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Toneable Flat Drop Cable

Toneable Flat Drop Cable

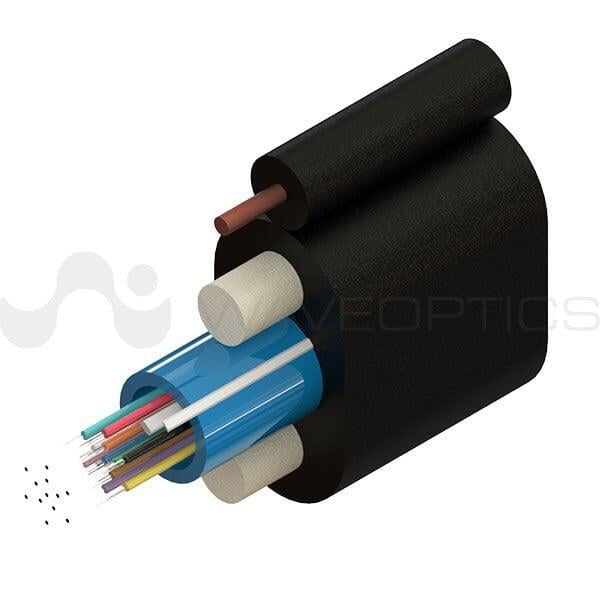

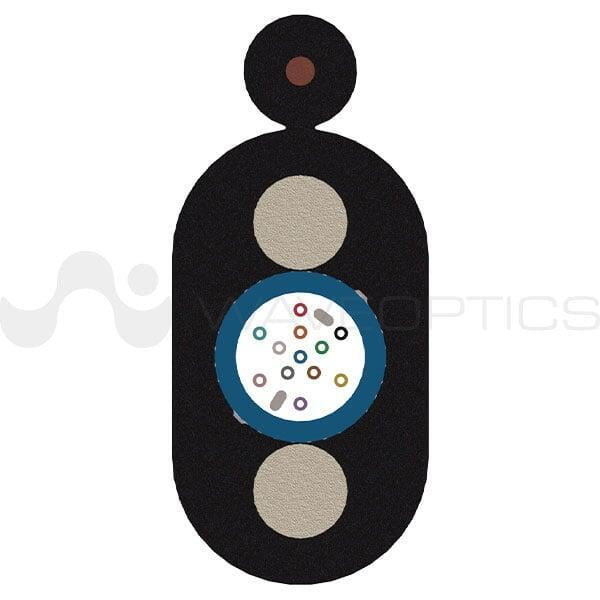

Waveoptics® Toneable Flat Drop Cable designed for self-supporting, direct-buried and duct installations. , fully dielectric design ideal for drop applications, offering ease of access as well as easy installation.


PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance.

Copper toning conductor allows effortless detection in direct-buried installation.

Applications

Protections

Toneable Flat Drop Cable Gel-Filled - Technical Data Sheet
Toneable Flat Drop Cable Dry - Technical Data Sheet

Design Properties

 Fiber per Tube1 - 12
 Nominal Outer Dimensions10.2 mm x 4.5 mm (0.4 in x 0.19 in) (±5%)
 Dielectric Strength Member Material / Diameter EAA Coated FRP / 1.5 mm (0.06 in)
 Toning Conductor 24 AWG Copper Wire
 Outer Jacket Material Polyethylene
 Loose Tube Material / Diameter PBT / 3 mm (0.12 in)
 Drum Length 5,000 ft ,10,000 ft, 15,000 ft 20,000 ft & 40,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Reel in a Box Flat Drop Cable

Reel in a Box Flat Drop Cable

Waveoptics® Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.

Single loose tube made of PBT which provides great mechanical properties under a wide range of conditions such as crush test and impact test.

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.

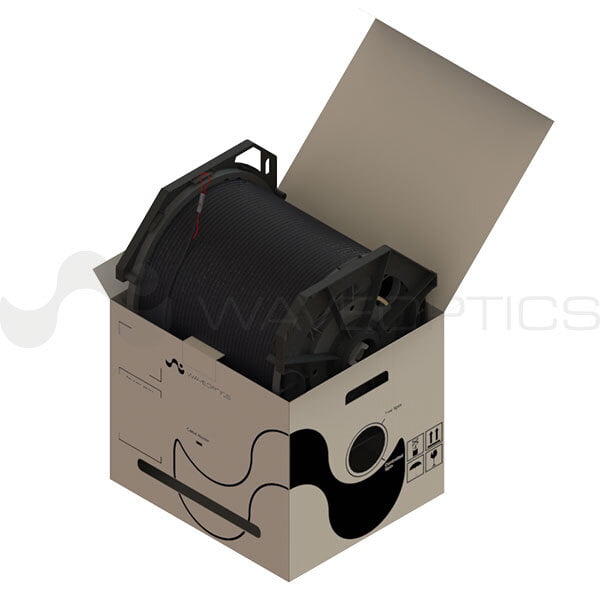

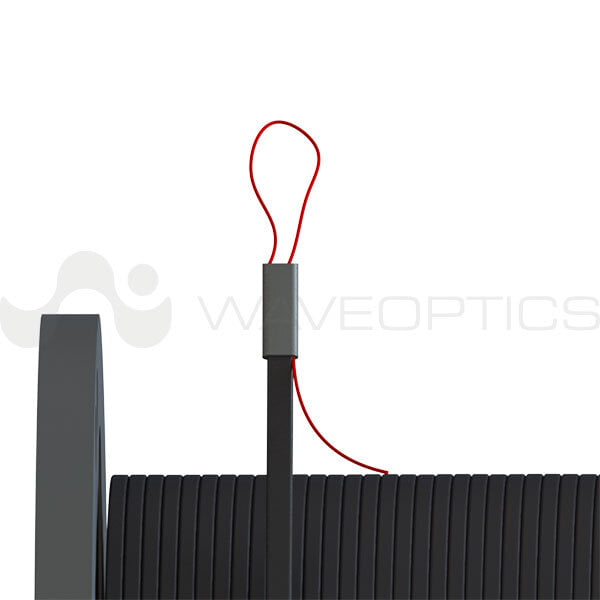

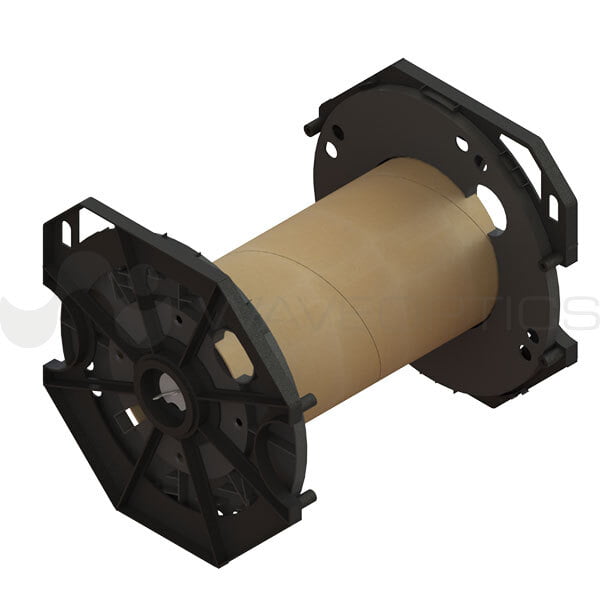

Reel-in-a-box packaging makes a quicker and easier installation, providing a cost-friendly and time-efficient installation method.

Applications

Protections

Reel in a Box Flat Drop Cable 3mm Gel-Filled - Technical Data Sheet
Reel in a Box Flat Drop Cable 3mm Dry - Technical Data Sheet

Design Properties

 Fiber per Tube1 - 12
 Nominal Outer Dimensions 8.1 mm x 4.5 mm (0.32 in x 0.18 in) (±5%)
 Dielectric Strength Member Material / Diameter EAA Coated FRP / 1.5 mm (0.06 in)
 Outer Jacket Material Polyethylene
 Loose Tube Material / Diameter PBT / 3 mm (0.12 in)
 Drum Length 1,500 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Reel in a Box Toneable Flat Drop Cable

Reel in a Box Toneable
Flat Drop Cable

Waveoptics® Toneable Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.

Single loose tube made of PBT which provides great mechanical properties under a wide range of conditions such as crush test and impact test.

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.

Copper toning conductor allows effortless detection in direct-buried installation.

Reel-in-a-box packaging makes a quicker and easier installation, providing a cost-friendly and time-efficient installation method.

Applications

Protections

Reel in a Box Toneable Flat Drop Cable 3mm Gel-Filled - Technical Data Sheet
Reel in a Box Toneable Flat Drop Cable 3mm Dry - Technical Data Sheet

Design Properties

 Fiber per Tube1 - 12
 Nominal Outer Dimensions10.2 mm x 4.5 mm (0.4 in x 0.19 in) (±5%)
 Dielectric Strength Member Material / Diameter EAA Coated FRP / 1.5 mm (0.06 in)
 Toning Conductor 24 AWG Copper Wire
 Outer Jacket Material Polyethylene
 Loose Tube Material / Diameter PBT / 3 mm (0.12 in)
 Drum Length1,500 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
