LOOSE TUBE ALL-DIELECTRIC CABLES

Product    Outdoor Cables   Loose Tube All-Dielectric Cables

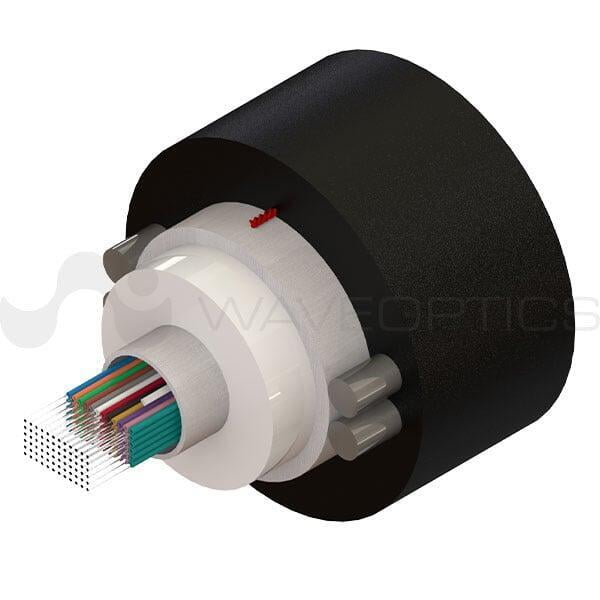

Central Loose Tube Cable
Loose Tube Cable
Loose Tube Slim Cable
Loose Tube Dielectric Armored Double Jacket Cable
Loose Tube All-Dielectric Flat Ribbon Fiber Cable
Central Loose Tube Cable

Central Loose Tube
All-Dielectric Cable

Waveoptics® Loose tube all-dielectric cables are the most commonly-deployed outside plant cables, because of its price and its installation flexibility, since these cables can be installed both in aerial (lashed) installations as well as in ducts through the following techniques: air-blown, jetted or pulled into a duct.

PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

Two ripcords ensure a quick fiber access.

The cable contains glass yarn that helps increase tensile strength.

Applications

Protections

Central Loose-Tube All-Dielectric Cable Dry - Technical Data Sheet

Design Properties

 Fiber per Tube1 - 12
 Nominal Outer Diameter7 mm (0.28 in) (±5%)
 Dielectric Strength MemberGlass Yarn
 Outer Jacket Material / Thickness Polyethylene / 1.9 mm (0.07 in)
 Loose Tube Material / Diameter PBT / 3 mm (0.12 in)
 Drum Length 10,000 ft. 15,000 ft, 20,000 ft & 40,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 1,100 N/100mm / 500 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD

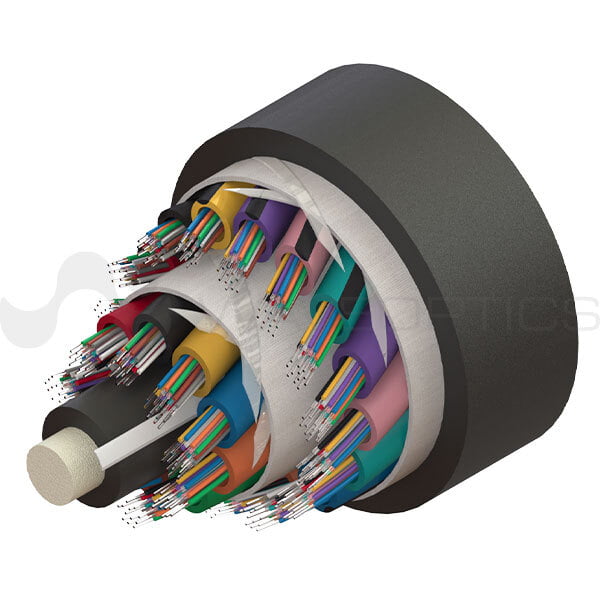

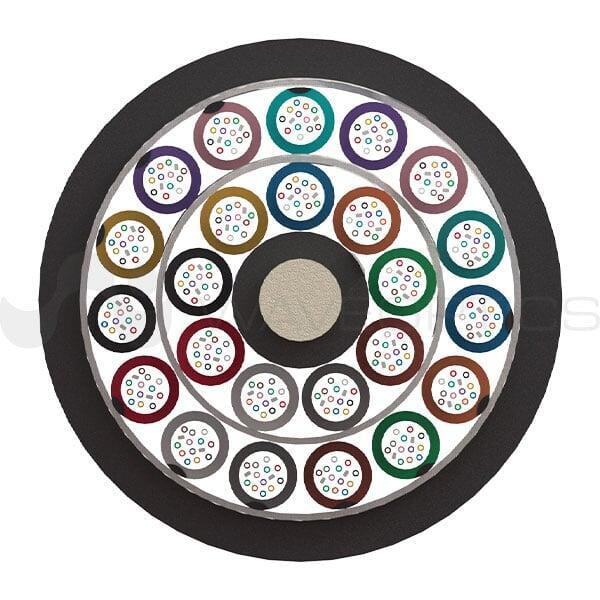

Loose Tube Cable

Loose Tube All-Dielectric Cable

Waveoptics® Loose tube all-dielectric cables are the most commonly-deployed outside plant cables, because of its price and its installation flexibility, since these cables can be installed both in aerial (lashed) installations as well as in ducts through the following techniques: air-blown, jetted or pulled into a duct.

The SZ-stranded method for loose tubes and two ripcords ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Applications

Protections

Loose-Tube All-Dielectric Cable Dry PP- Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Dielectric Strength MemberFRP
 Outer Jacket Material / Thickness Polyethylene / 1.5 mm (0.06 in)
 Loose Tube Diameter2.5 mm (0.07 in)
 Drum Length 10,000 ft, 15,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD

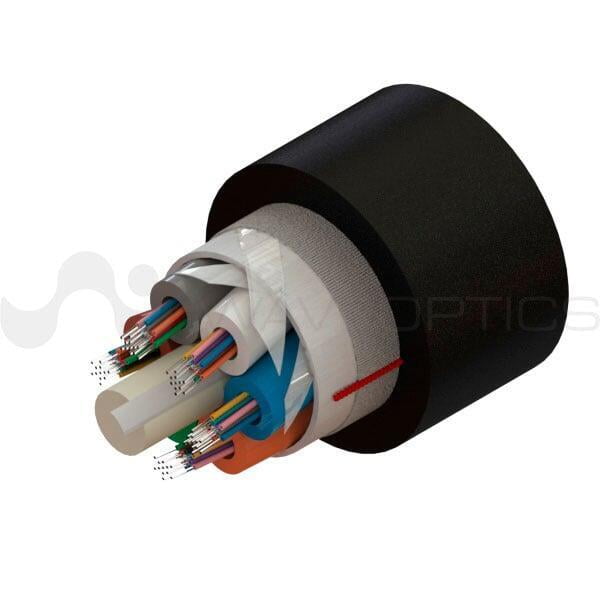

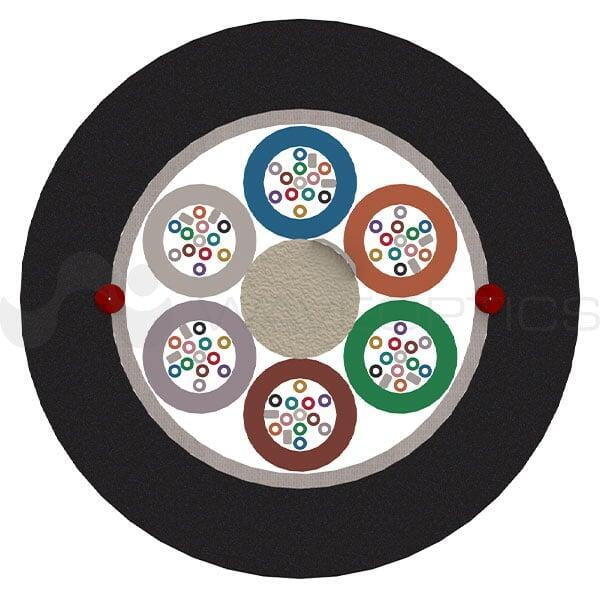

Loose Tube Slim Cable

Loose Tube All-Dielectric Slim Cable

Waveoptics® Loose tube all-dielectric cables are the most commonly-deployed outside plant cables, because of its price and its installation flexibility, since these cables can be installed both in aerial (lashed) installations as well as in ducts through the following techniques: air-blown, jetted or pulled into a duct. Waveoptics® Loose Tube Slim Cable has a reduced weight design and smaller diameter that allows the usage of smaller ducts.

The SZ-stranded method for loose tubes and two ripcords ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Applications

Protections

Loose-Tube All-Dielectric Slim Cable Dry PP- Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Dielectric Strength MemberFRP
 Outer Jacket Material / Thickness Polyethylene / 1.5 mm (0.06 in)
 Loose Tube Diameter1.9 mm (0.07 in)
 Drum Length 10,000 ft, 15,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD

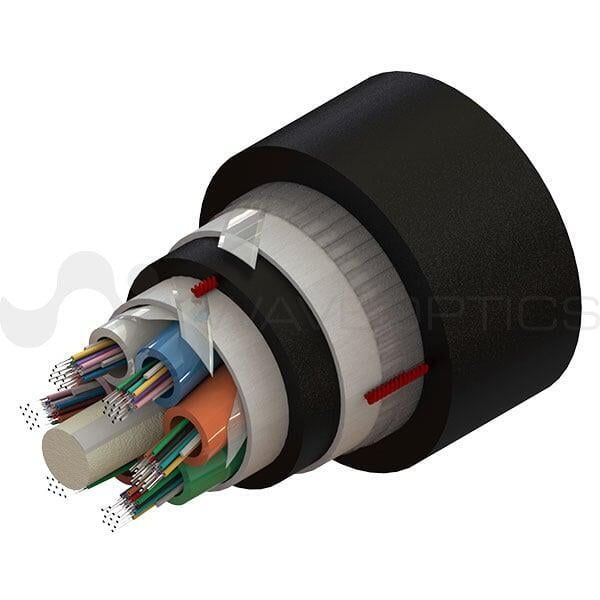

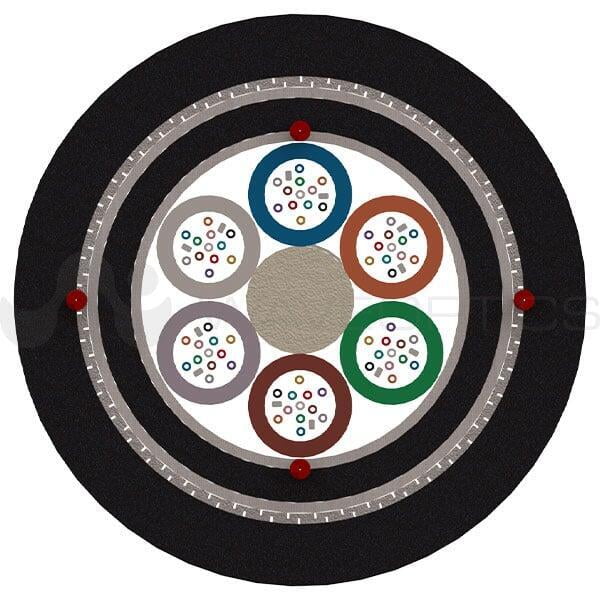

Loose Tube Dielectric Armored Double Jacket Cable

Loose Tube Dielectric Armored
Double Jacket Cable

Waveoptics® Loose Tube Dielectric Armored Double Jacket Cable is an all-dielectric cable designed for aerial (lashed) and duct installations.

Special rodent deterrent HDPE outer jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors, with added hardness. The inner jacket is made of MDPE, since it is covered by the hard outer jacket and glass yarn armor.

Dielectric central strength member requires no bonding or grounding. Double jacket design and dielectric armoring made of glass yarns that offers improved mechanical properties, and acts as a small rodent deterrent, while maintaining flexibility.

Applications

Protections

Loose Tube Dielectric Armored Double Jacket Cable Dry PP - Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Dielectric Strength MemberFRP
 Peripheral Strength Member Glass Yarn
 Outer Jacket Material / Thickness Rodent Deterrent HDPE / 1.5 mm (0.06 in)
 Loose Tube Diameter2.5 mm (0.1 in)
 Drum Length 10,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 3,00 N/100mm / 1,500 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD

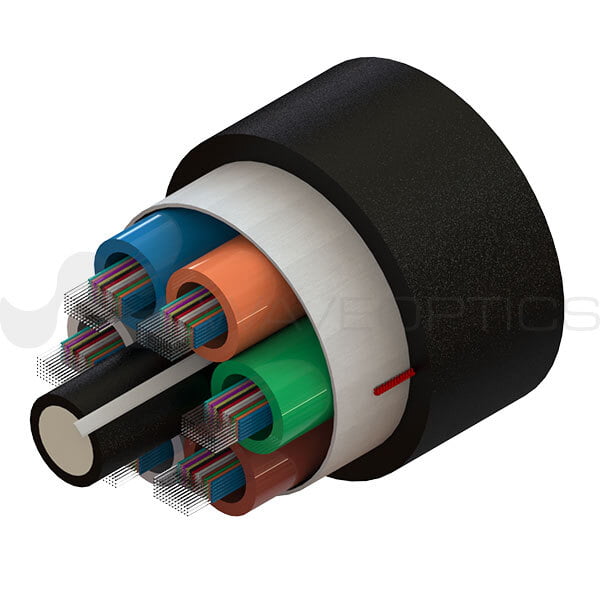

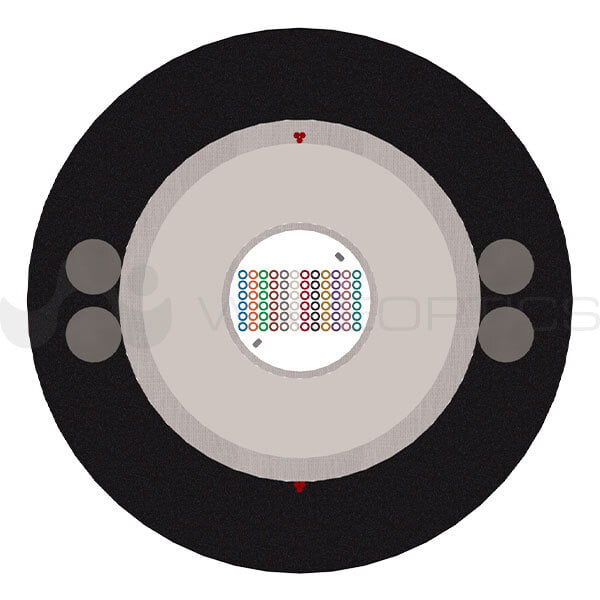

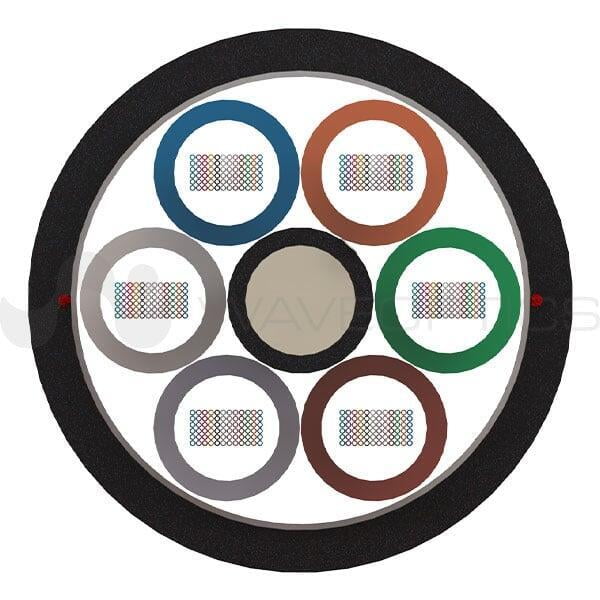

Loose Tube All-Dielectric Flat Ribbon Fiber Cable

Loose Tube All-Dielectric Flat Ribbon Fiber Cable

Waveoptics® Loose tube Ribbon cables are designed for outdoor applications, these cables can be installed in ducts and they are known because of their outstanding carrying capacity.

Ribbon units are stranded around a fiber reinforced plastic (FRP) central strength member with PE is surrounded with water blocking yarns.

PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

Dielectric central strength member requires no bonding or grounding.

Applications

Protections

Loose Tube Dielectric Armored Double Jacket Slim Cable Dry PP - Technical Data Sheet

Design Properties

 Fiber per Tube8 - 12
 Dielectric Strength MemberFRP
 Outer Jacket Material Polyethylene
 Loose Tube MaterialPBT
 Drum Length96 F, 144 F: 20,000 (6,096 m) (+5%)
288F, 432 F, 576F: 10,000 (3,048 m) (+5%)
864 F: 6,562 ft (2,000 m) (+5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 1,500 N/100mm / 500 N/100mm
Tensile Strength (Short-Term / Long-Term)2,700 N / 900 N 
 Minimum Bend Radius
(Operation / Installation)
 15 x OD / 20 x OD
