Micro Flat Drop Cable
Toneable Micro Flat Drop Cable
Micro Flat Drop Cable

Micro Flat Drop Cable

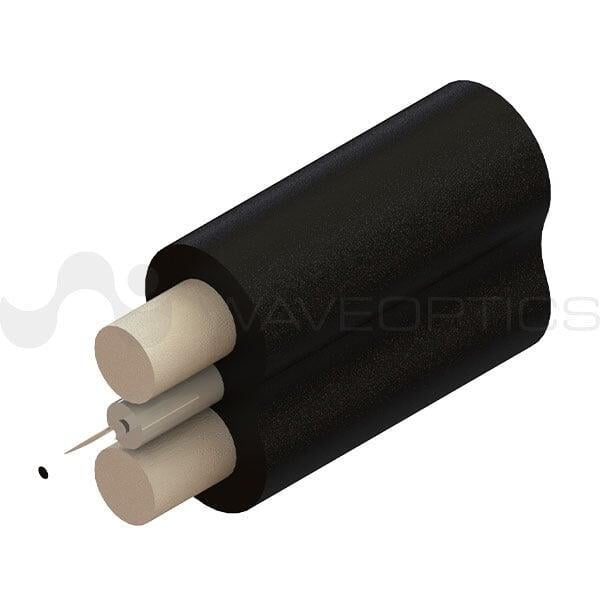

Waveoptics® Micro Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.

Compact and robust design provides ease of handling and also reduces transportation and storage costs. Available in 250 micron bare fiber and 900 micron tight-buffered fiber configurations.

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.

Applications

Protections

  Only applicable for the tight buffer in the 900um configuration

  Only applicable for the outer jacket

Micro Flat Drop Cable Gel-Filled - Technical Data Sheet

Design Properties

 Fiber per Tube1-4

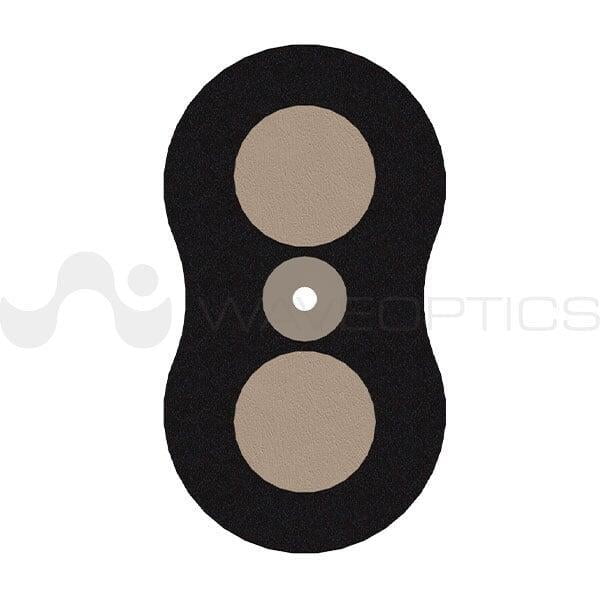

 Nominal Outer Dimensions5.4 mm x 3 mm (0.21 in x 0.12 in) (±5%)
 Bare Fiber / Tight Buffer Diameters 0.25 mm / 0.9 mm
 Dielectric Strength Member Material / DiameterEAA Coated FRP / 1.3 mm (0.05 in)
 Outer Jacket Material Polyethylene
Tight Buffer (900 um configuration)PVC Plenum
 Drum Length5,000 ft,  10,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Toneable Micro Flat Drop Cable

Toneable Micro Flat Drop Cable

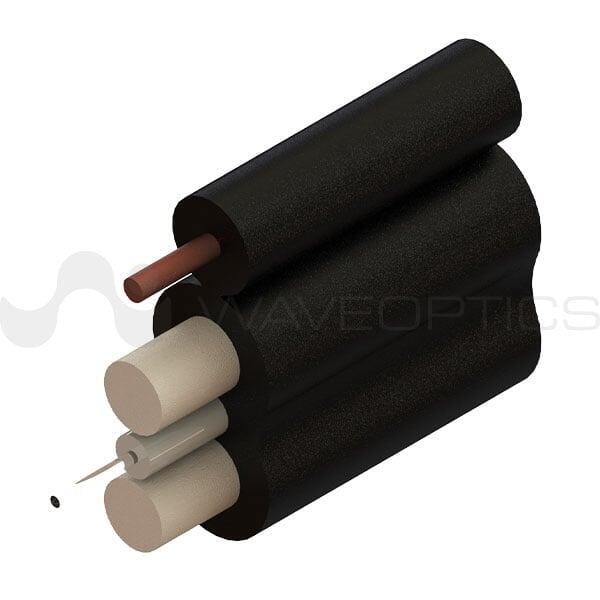

Waveoptics® Toneable Micro Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Ideal for drop applications, offering ease of access as well as easy installation. Compact and robust design provides ease of handling and also reduces transportation and storage costs. Available in 250 micron bare fiber and 900 micron tight-buffered fiber configurations.

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.

Copper toning conductor allows effortless detection in direct-buried installation.

Applications

Protections

  Only applicable for the tight buffer in the 900um configuration

  Only applicable for the outer jacket

Toneable Flat Drop Cable Gel-Filled - Technical Data Sheet

Design Properties

 Fiber per Tube1-4

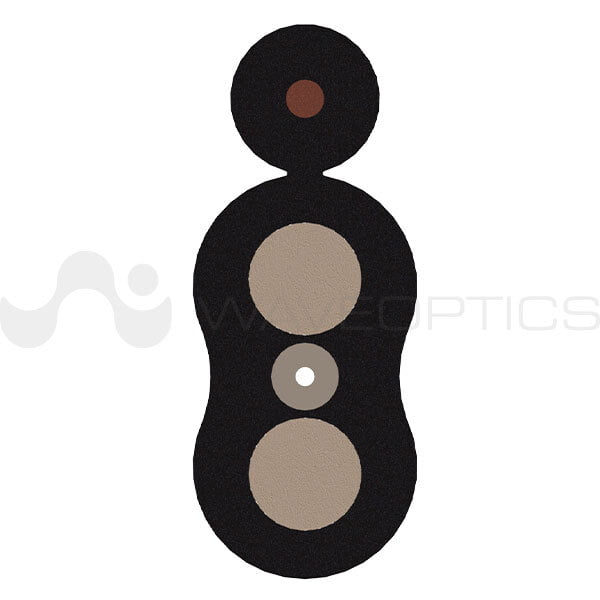

 Nominal Outer Dimensions6.6 mm x 3 mm (0.26 in x 0.12 in) (±5%)
 Dielectric Strength Member Material / Diameter EAA Coated FRP / 1.3 mm (0.05 in)
 Toning Conductor 24 AWG Copper Wire
 Outer Jacket MaterialPolyethylene
Tight Buffer Material (900 um configuration)
PVC Plenum
 Drum Length5,000 ft, 10,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
