MDU Drop Cable
FTTH Drop Cable
Reel in a Box MDU Drop Cable
MDU Drop Cable

MDU Drop Cable

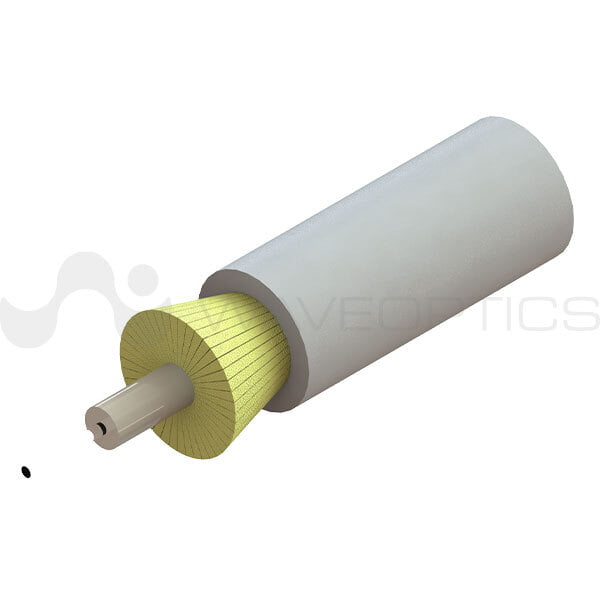

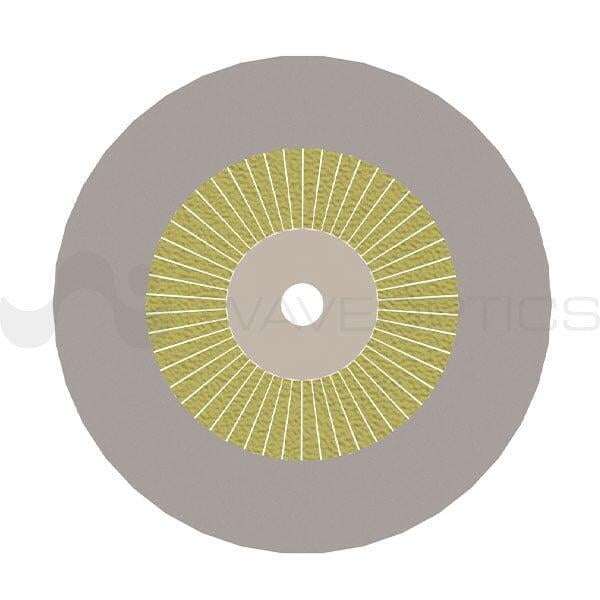

Waveoptics® MDU Drop Cable is ideal for FTTH applications, due to its flexibility, robustness and light weight. The optical fibers are positioned in the center of the cable under a 900um tight buffer tube. 2.95 mm and 4.7 mm outer diameter configurations available.

These cables are also widely used for drop cable assembly production, where consistency and uniformity are required for fast terminations to be used with standard cable termination tooling.

Water blocking aramid yarn as a strength member to provide excellent tensile strength as well as protection against water penetration.

Applications

Protections

  Only applicable for PVC Plenum and LSZH materials

MDU Drop Cable Gel-FIlled - Technical Data Sheet

Design Properties

 Fiber Count1
 Tight Buffer Material / Diameter PVC Riser, PVC Plenum & LSZH / 0.9 mm (0.04 in) (±5%)
 Nominal Outer Dimensions2.95 mm & 4.7 mm (0.12 in & 0.19 in) (±5%)
 Dielectric Strength MemberWater Blocking Aramid Yarn
 Outer Jacket Material / ColorPVC Riser, PVC Plenum & LSZH / Black & White
Reel Length3,281 ft & 6,562 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation (Riser/Plenum)-10°C to 60°C (14°F to 140°F) /  0°C to 60°C (32°F to 140°F)
 Storage / Transport (Riser/Plenum)-40°C to 70°C (-40°F to 158°F) / -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Maximum Crush Resistance
(2.95 mm diameter cable)
 350 N/100mm
 Maximum Crush Resistance (4.7 mm diameter cable) 1,000 N/100mm
 Minimum Bend Radius 10 x OD / 20 x OD
FTTH Drop Cable

FTTH Cable

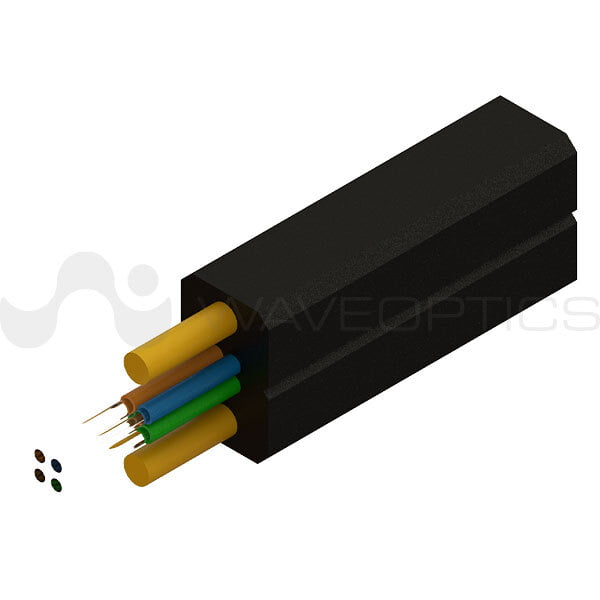

Waveoptics® All-Dielectric FTTH Drop Cable is an economical, small factor cable, optimal for indoor/outdoor applications and is ideal for short distance external use. The flat design offers easy stripping with no tools, simplifying the installation process. This cable is not CPR compliant.

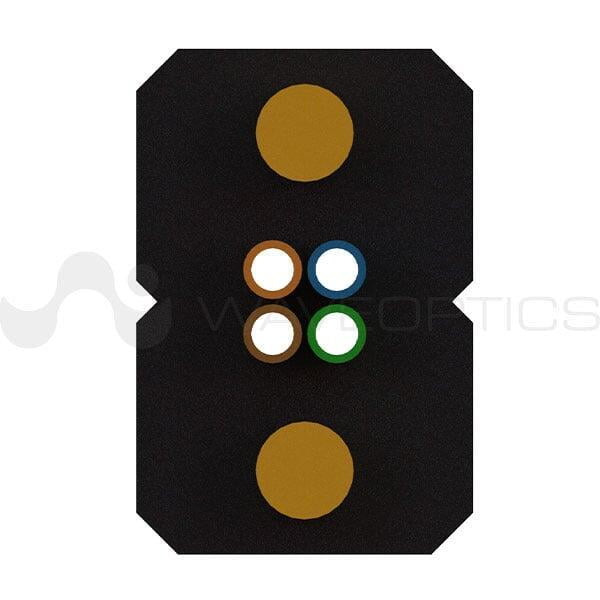

The optical fiber is positioned in the center of the cable, two parallel KFRP´s (Kevlar Fiber Reinforced Plastic) or FRP´s (Fiber Reinforced Plastic) rods located on both sides as reinforcement against crushing and traction forces, protecting the fibers.

LSZH outer jacket offers great flame retardant properties, with low smoke and zero halogen materials, preventing it from being toxic, while providing UV and chemical resistance.

Applications

Protections

FTTH Drop Cable Gel-Filled - Technical Data Sheet

Design Properties

 Fiber Count1 - 4
 Nominal Outer Dimensions 3 mm x 2 mm (0.12 in x 0.08 in) (±5%)
 Dielectric Strength MemberKFRP & FRP
 Outer Jacket Material / ColorLSZH / Black
Reel Length3,281 ft & 6,562 ft (±5%)

Temperature Range

 Operation (Riser/Plenum)
-20°C to 70°C (-4°F to 158°F) / 0°C to 70°C (32°F to 158°F)
 Installation (Riser/Plenum) -10°C to 60°C (14°F to 140°F) /  0°C to 60°C (32°F to 140°F)
 Storage / Transport (Riser/Plenum)-40°C to 70°C (-40°F to 158°F) / -40°C to 70°C (-40°F to 158°F)

Mechanical Properties


Maximum Crush Resistance
 1,000 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 15 x OD / 25 x OD

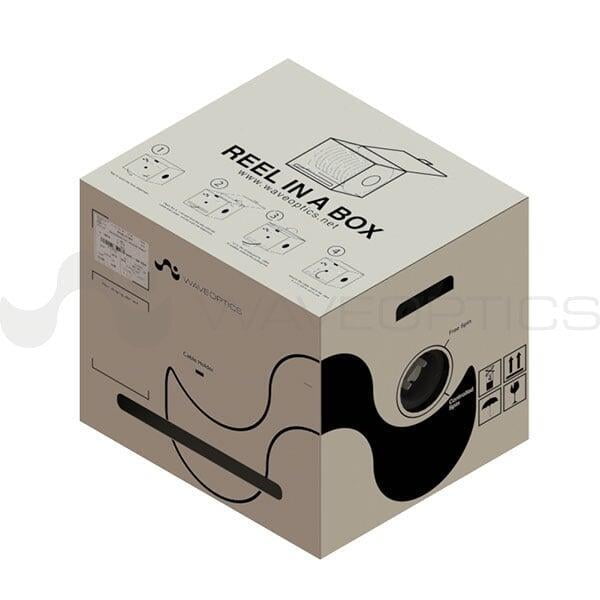

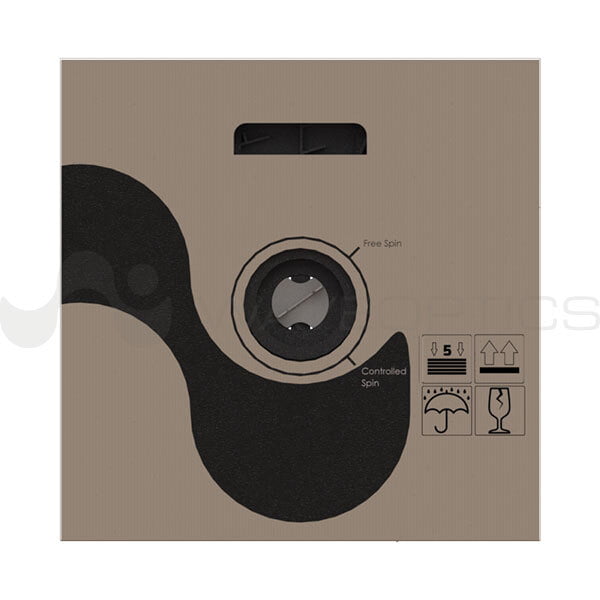

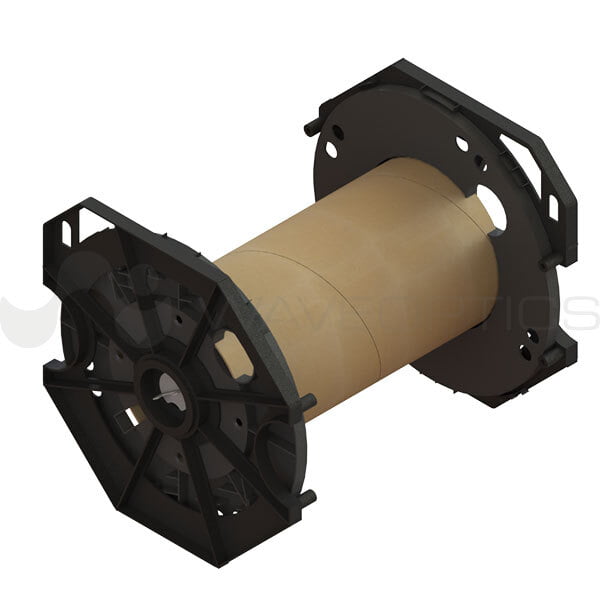

Reel in a Box MDU Drop Cable

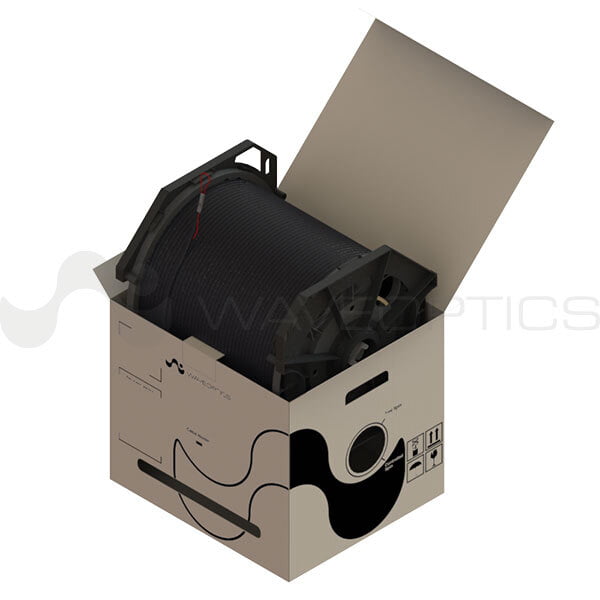

Reel in a Box MDU Drop Cable

Waveoptics® MDU Drop Cable is ideal for FTTH applications, due to its flexibility, robustness and light weight. The optical fibers are positioned in the center of the cable under a 900um tight buffer tube 2.95 mm and 4.7 mm outer diameter configurations available.

These cables are also widely used for drop cable assembly production, where consistency and uniformity are required for fast terminations to be used with standard cable termination tooling.

Water blocking aramid yarn as a strength member to provide excellent tensile strength as well as protection against water penetration.

Applications

Protections

Reel in a Box MDU Drop Cable Gel-FIlled - Technical Data Sheet

Design Properties

 Fiber Count1
 Nominal Outer Diameter2.95 mm, 4.7 mm (0.12 in, 0.19 in) (±5%)
 Dielectric Strength MemberWater Blocking Aramid Yarn
 Outer Jacket Material / ColorPVC Riser, PVC Plenum / Black & White
Reel Length3,500 ft (Ø 4.7), 9,000 ft (Ø 2.95) (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation (Riser/Plenum)-10°C to 60°C (14°F to 140°F) /  0°C to 60°C (32°F to 140°F)
 Storage / Transport-40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Maximum Crush Resistance
(2.95 mm diameter cable)
 350 N/100mm
 Maximum Crush Resistance (4.7 mm diameter cable) 1,000 N/100mm
 Minimum Bend Radius 10 x OD / 20 x OD
