FLAT DROP INDOOR/OUTDOOR CABLES

Product    Indoor/Outdoor Cables   Flat Drop Indoor/Outdoor Cables

Sag and Tension Guide for Flat Drop Cables
Flat Drop Indoor/Outdoor Cable
Flat Drop Indoor/Outdoor Duplex Cable
Toneable Flat Drop Indoor/Outdoor Simplex Cable
Toneable Flat Drop Indoor/Outdoor Duplex Cable
Flat Drop Indoor/Outdoor Cable

Flat Drop Indoor/Outdoor Simplex Cable

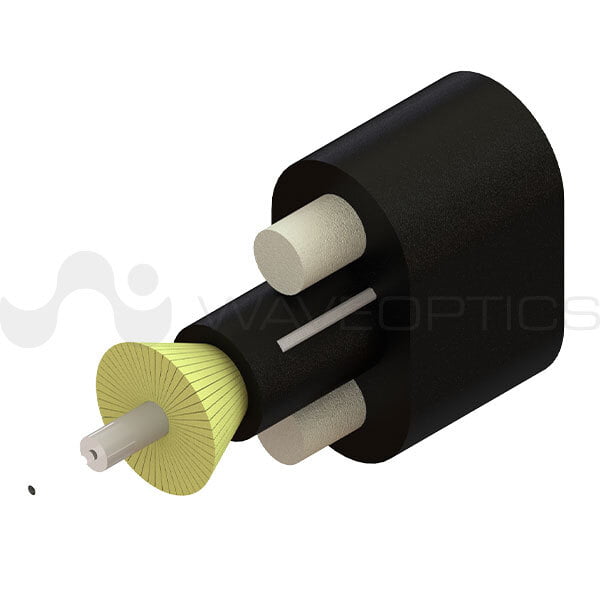

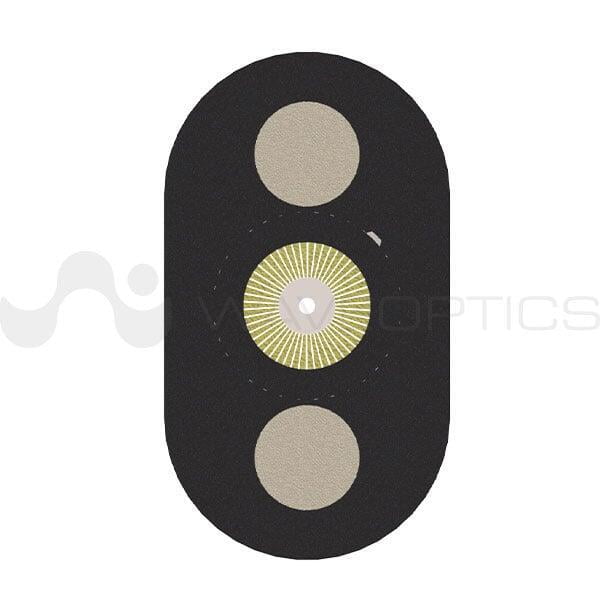

Waveoptics® Flat Drop Indoor/Outdoor Simplex Cable is designed to meet the requirements for indoor/outdoor drop cables with a fully dielectric construction, simplifying the transition from the outdoor environment to an indoor Optical Network Terminal (ONT).

Small sub-unit diameter and bend radius that allows an easy installation in space-constrained areas.

PE outer jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

PVC Riser, PVC Plenum and LSZH inner jackets are available for the sub-unit that contains the optical fiber.

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.

Applications

Protections

  Only applicable for inner jacket

  Only applicable for outer jacket

Flat Drop Indoor/Outdoor Cable Gel-FIlled - Technical Data Sheet

Design Properties

 Fiber per Tube2 - 12
 Nominal Outer Dimensions 8.1 mm x 4.5 mm (0.32 in x 0.18 in) (±5%)
 Dielectric Strength Member Material / DiameterEAA Coated FRP / 1.5 mm (0.06 in)
 Outer Jacket Material Polyethylene
Tight Buffer / Inner Jacket MaterialPVC Riser & PVC Plenum
 Drum Length5,000 ft,  10,000 ft, 15,000 ft & 20,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Flat Drop Indoor/Outdoor Duplex Cable

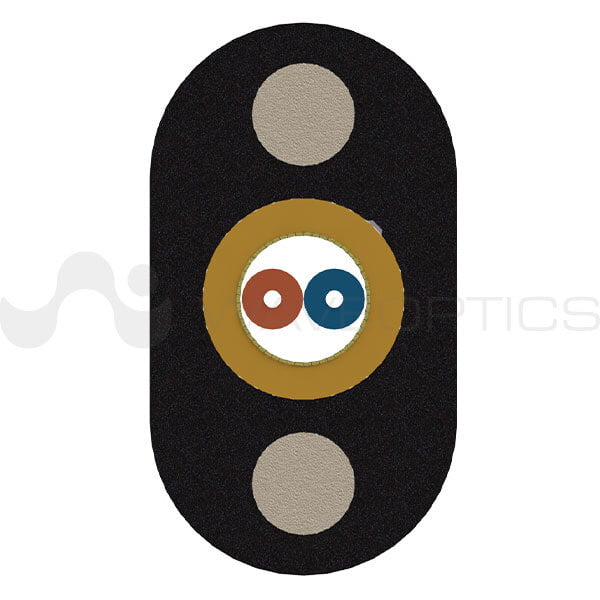

Flat Drop Indoor/Outdoor Duplex Cable

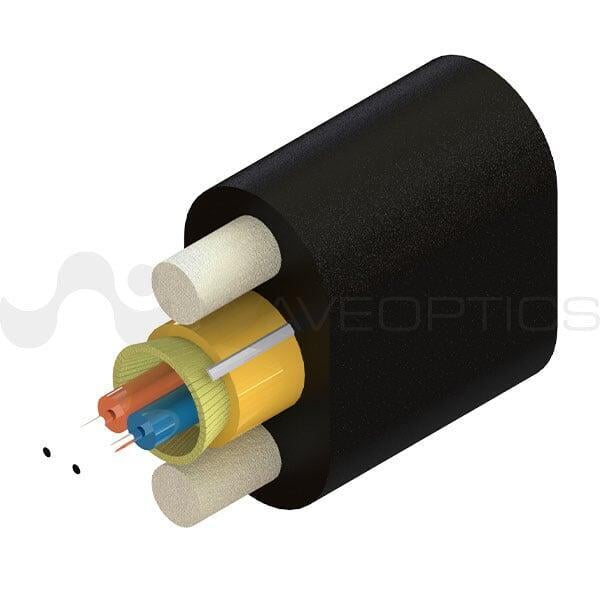

Waveoptics® Flat Drop Indoor/Outdoor Round Duplex Cable is designed to meet the requirements for indoor/outdoor drop cables with a fully dielectric construction, simplifying the transition from the outdoor environment to an indoor Optical Network Terminal (ONT).

Small sub-unit diameter and bend radius that allow an easy installation in space-constrained areas.

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.

Applications

Protections

  Only applicable for inner jacket

  Only applicable for outer jacket

Flat Drop Indoor/Outdoor Duplex Cable Gel-Filled - Technical Data Sheet

Design Properties

 Fiber per Tube2
 Nominal Outer Dimensions8.1 mm x 4.5 mm (0.32 in x 0.18 in)
 Dielectric Strength Member / DiameterEAA Coated FRP / 1.5 mm (0.06 in)
 Outer Jacket MaterialPolyethylene
Tight Buffer / Inner Jacket Material
PVC Riser, PVC Plenum & LSZH
 Drum Length5,000 ft, 10,000 ft, 15,000 ft 20,000 ft & 40,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Toneable Flat Drop Indoor/Outdoor Simplex Cable

Toneable Flat Drop Indoor/Outdoor Simplex Cable

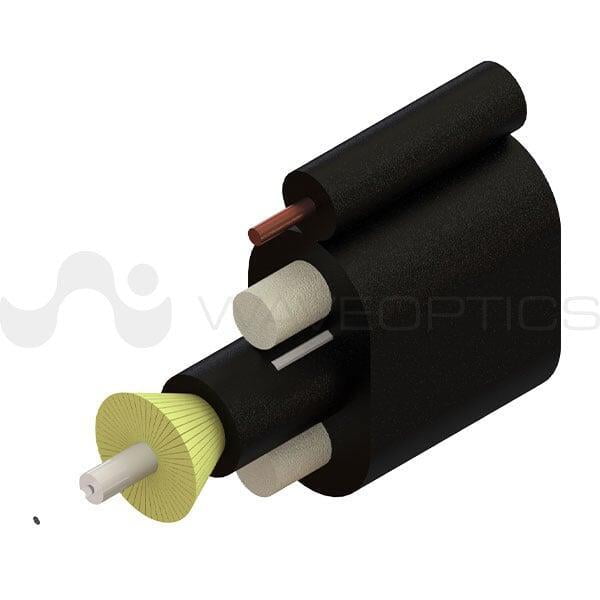

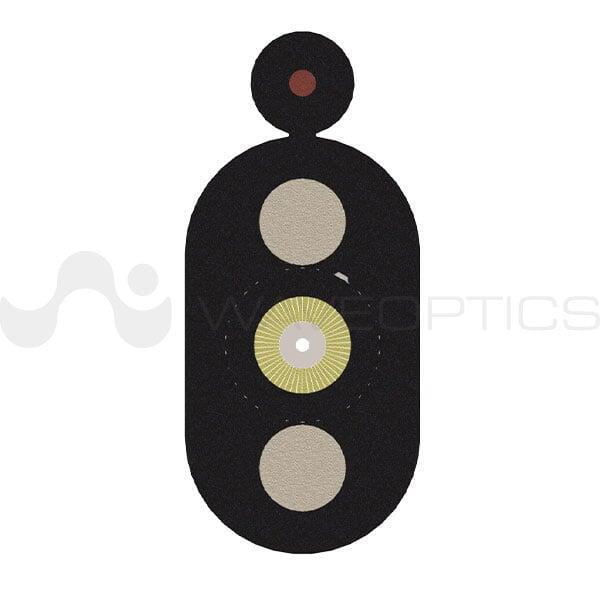

Waveoptics® Toneable Flat Drop Indoor/Outdoor Simplex Cable is designed to meet the requirements for indoor/outdoor drop cables, simplifying the transition from the outdoor environment to an indoor Optical Network Terminal (ONT).

Small sub-unit diameter and bend radius that allow an easy installation in space-constrained areas.

PE outer jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

PVC Riser, PVC Plenum and LSZH inner jackets are available for the sub-unit that contains the optical fiber.

Two parallel dielectric strength members that offer exceptional crush resistance. The FRP strength members are coated with EAA for  improved adherence.
Copper toning conductor allows effortless detection in direct-buried installation.

Applications

Protections

  Only applicable for inner jacket

  Only applicable for outer jacket

Toneable Flat Drop Indoor/Outdoor Simplex Cable Gel-Filled - Technical Data Sheet

Design Properties

 Fiber per Tube1
 Nominal Outer Dimensions 10.2 mm x 4.5 mm (0.4 in x 0.18 in) (±5%)
 Dielectric Strength Member Material / DiameterEAA Coated FRP / 1.5 mm (0.06 in)
Toning Conductor 24 AWG Copper Wire
 Outer Jacket Material Polyethylene
 Tight Buffer / Inner Jacket MaterialPVC Riser & PVC Riser UV
 Drum Length 5,000 ft ,10,000 ft, 15,000 ft, 20,000 ft & 40,000(±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
 2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
Toneable Flat Drop Indoor/Outdoor Duplex Cable

Toneable Flat Drop Indoor/Outdoor Duplex Cable

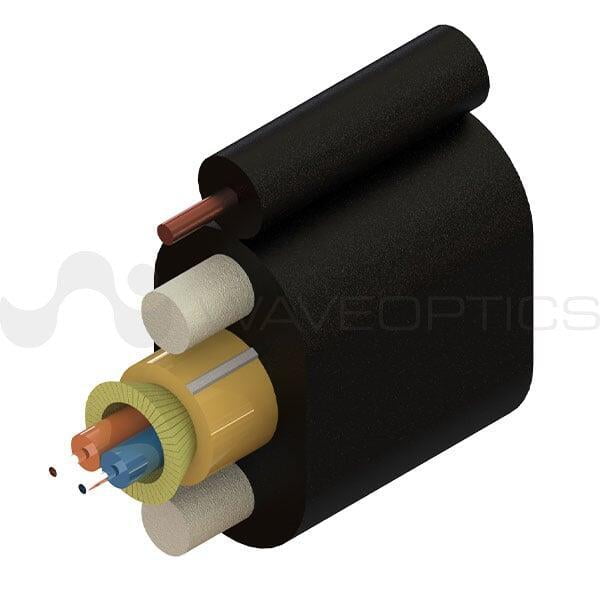

Waveoptics® Toneable Flat Drop Indoor/Outdoor Round Duplex Cable is designed to meet the requirements for indoor/outdoor drop cables, simplifying the transition from the outdoor environment to an indoor Optical Network Terminal (ONT).

Small sub-unit diameter and bend radius that allow an easy installation in space-constrained areas.

Two parallel dielectric strength members that offer exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence. Copper toning conductor allows effortless detection in direct-buried installation.

Applications

Protections

  Only applicable for inner jacket

  Only applicable for outer jacket

Toneable Flat Drop Indoor/Outdoor Duplex Cable Gel-Filled - Technical Data Sheet

Design Properties

 Fiber per Tube2
 Nominal Outer Dimensions10.2 mm x 4.7 mm (0.4 in x 0.19 in)
 Dielectric Strength Member / DiameterEAA Coated FRP / 1.5 mm (0.06 in)
Toning Conductor 24 AWG Copper Wire
 Outer Jacket Material Polyethylene
 Tight Buffer / Inner Jacket Material PVC Riser, PVC Plenum & LSZH
 Drum Length5,000 ft,  10,000 ft, 15,000 ft 20,000 ft & 40,000 ft (±5%)

Temperature Range

 Operation
-40°C to 70°C (-40°F to 158°F)
 Installation -30°C to 70°C (-22°F to 158°F)
 Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Crush Resistance
(Short-Term / Long-Term)
2,200 N/100mm / 1,100 N/100mm
 Minimum Bend Radius
(Operation / Installation)
 10 x OD / 20 x OD
