FIGURE 8 DROP CABLES

Product    Indoor/Outdoor Cables   Figure 8 Drop Cables

FTTH Figure 8 Drop Cable
FTTH Figure 8 Drop Cable

FTTH Figure 8 Drop Cable

Waveoptics® FTTH Figure 8 Drop Cable is an economical, small factor, self-supporting cable, optimal for indoor/outdoor applications and is ideal for longer distance external use, compared to FTTH Drop Cable. The flat design offers easy stripping with no tools, simplifying the installation process.

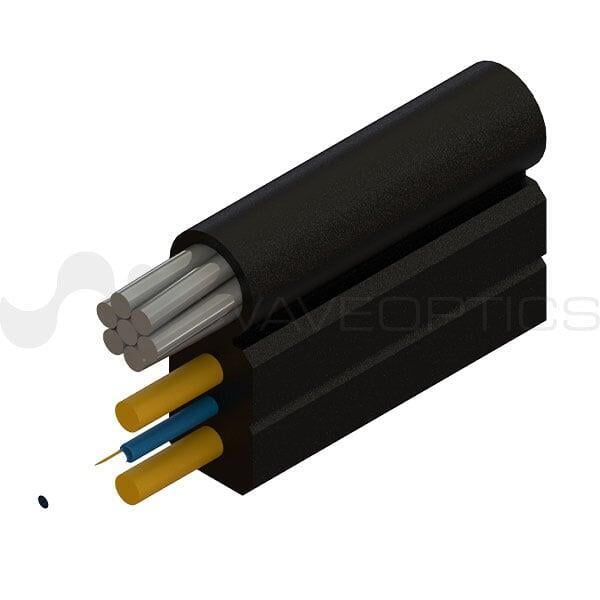

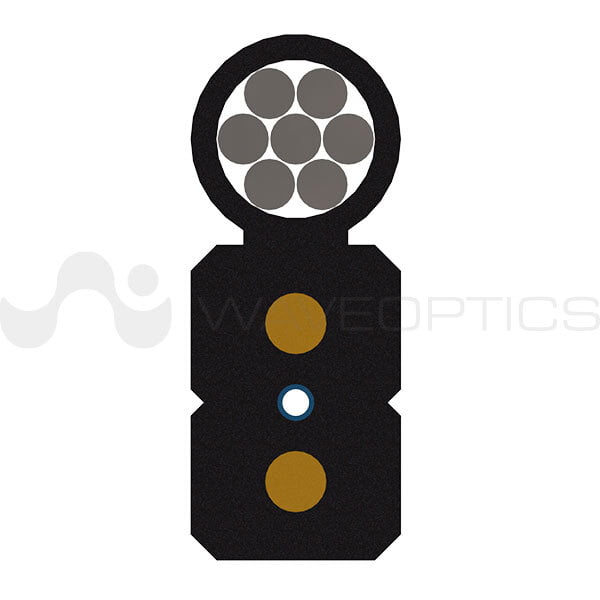

For self-supporting applications, a galvanized steel messenger consisting of 7 steel wires with a total diameter of 1.2 mm is incorporated.

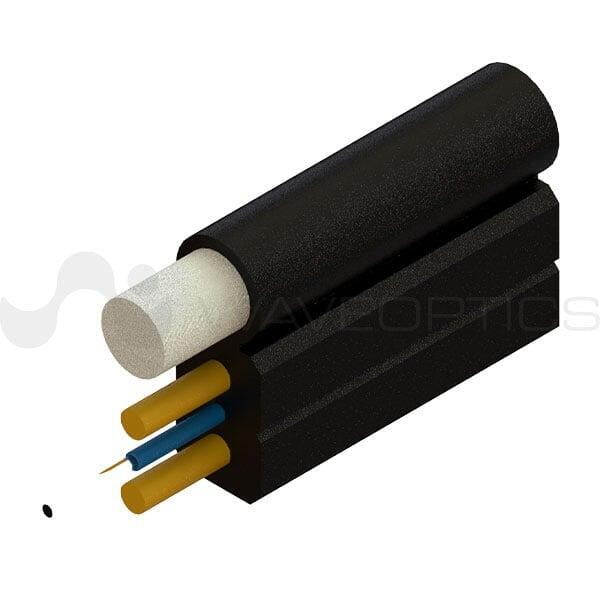

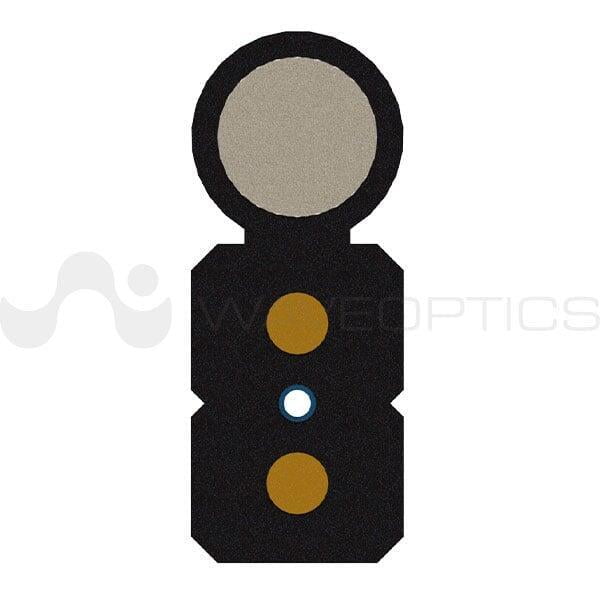

The optical fiber is positioned in the center of the cable, parallel KFRP´s (Kevlar Fiber Reinforced Plastic) or FRP´s (Fiber Reinforced Plastic) rods located on both sides as reinforcement against crushing and traction forces, protecting the fibers.

Applications

Protections

  Not Applicable for G652.D fiber type

FTTH Figure 8 Drop Cable Gel-FIlled - Technical Data Sheet

Design Properties

 Fiber Count1 - 4
 Nominal Outer Dimensions 5 mm x 2 mm (0.2 in x 0.08) (±5%)
 Dielectric Strength Member KFRP & FRP
 Steel Messenger Diameter 1.2 mm (0.05 in)
 Outer Jacket Material / ColorLSZH / Black
Reel Length6,562 ft (±5%)

Temperature Range

 Operation (Riser/Plenum)
-20°C to 70°C (-4°F to 158°F) / 0°C to 70°C (32°F to 158°F)
 Installation (Riser/Plenum)-10°C to 60°C (14°F to 140°F) /  0°C to 60°C (32°F to 140°F)
 Storage / Transport (Riser/Plenum)-40°C to 70°C (-40°F to 158°F) / -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

 Maximum Crush Resistance
 1,000 N/100mm
Maximum Bend Radius (Operation / Installation)
 20 x OD / 40 x OD
