TIGHT BUFFER UV CABLES
Close Tabs

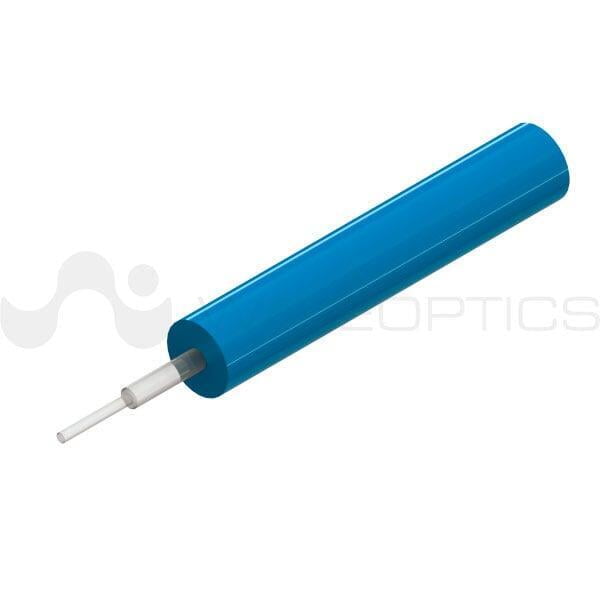

Tight Buffer UV Cable
Tight Buffer UV Cable
Description

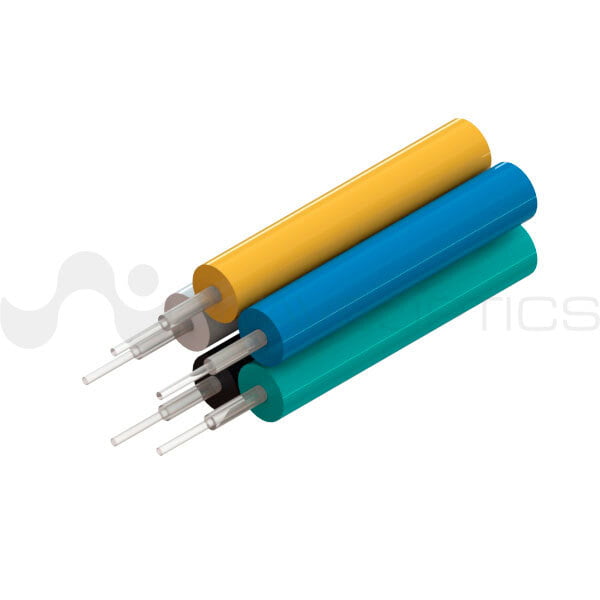

Waveoptics UV Resistant Tight Buffer 900um Cable is designed for indoor/outdoor applications. The size of the tight buffer is compatible with existing tooling and also fits a vast number of connectors. The following jacket colors are available: yellow, blue, aqua, white and black.
Applications
Protections
Physical Properties
| Fiber count | 1 |
Tight buffer material | PVC Riser / PVC Plenum / LSZH |

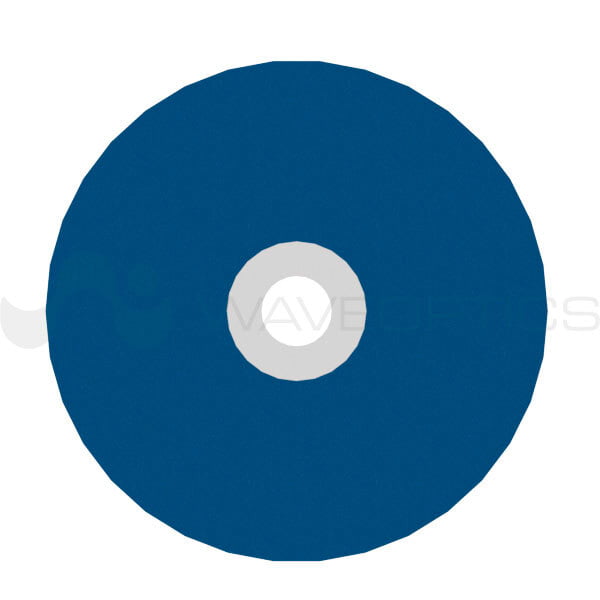

| Nominal outer diameter | 0.9 mm (0.04 in) (±5%) |
| Drum length | 2 km (6,562 ft) (±5%) |
Operation temperature range | 0ºC to 70ºC (-40ºF to 158ºF) |
| Installation temperature range | 0ºC to 60ºC (-32ºF to 140ºF) |
| Storage / transport temperature range | -40ºC to 70ºC (-40ºF to 158ºF) |
Mechanical Properties
| Tensile strength (long-term / short-term) | 3 N (0.67 lbf) / 6N (1.35 lbf) |
| Minimum bend radius (operation / installation) | 25 mm (1 in) / 50 mm (2 in) |
